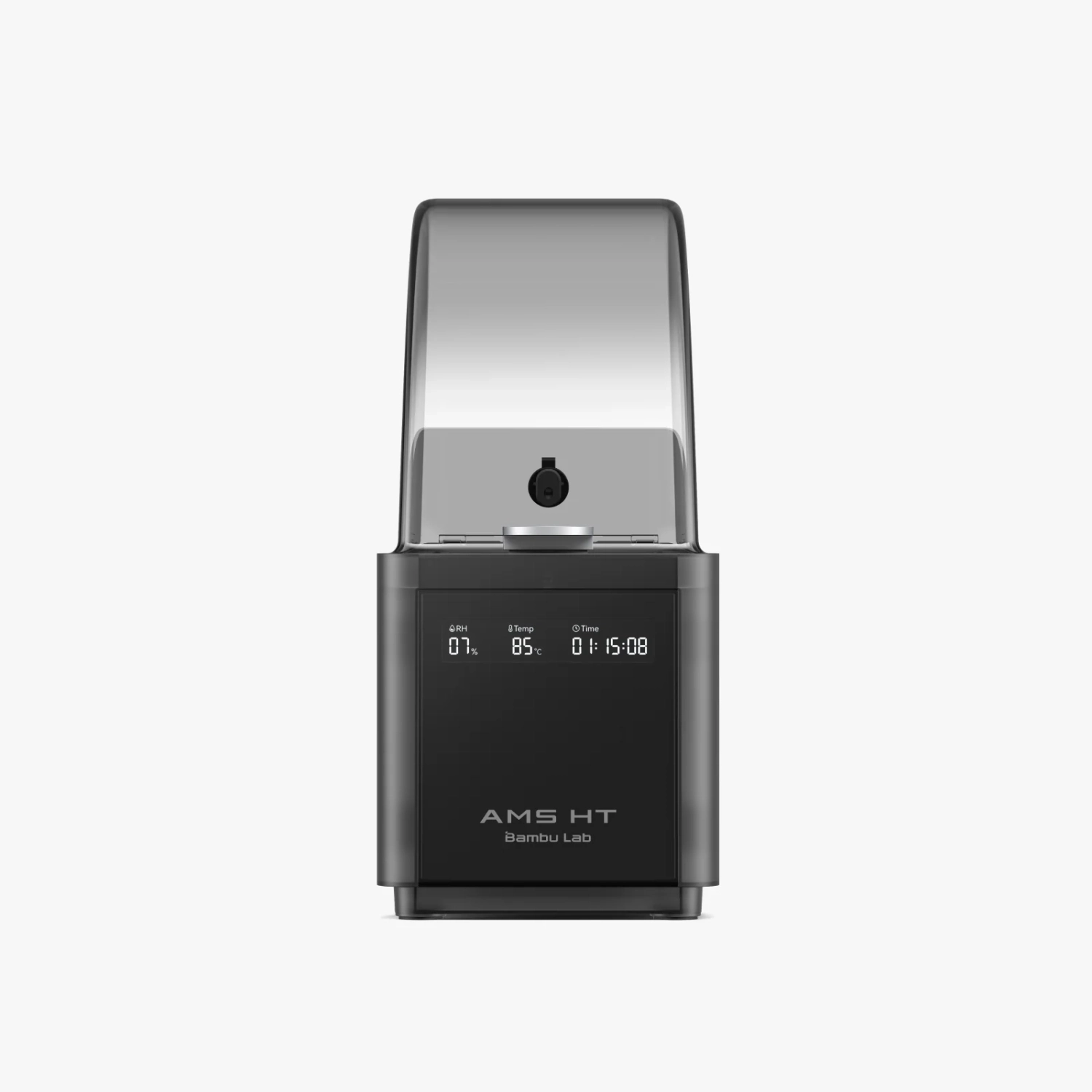

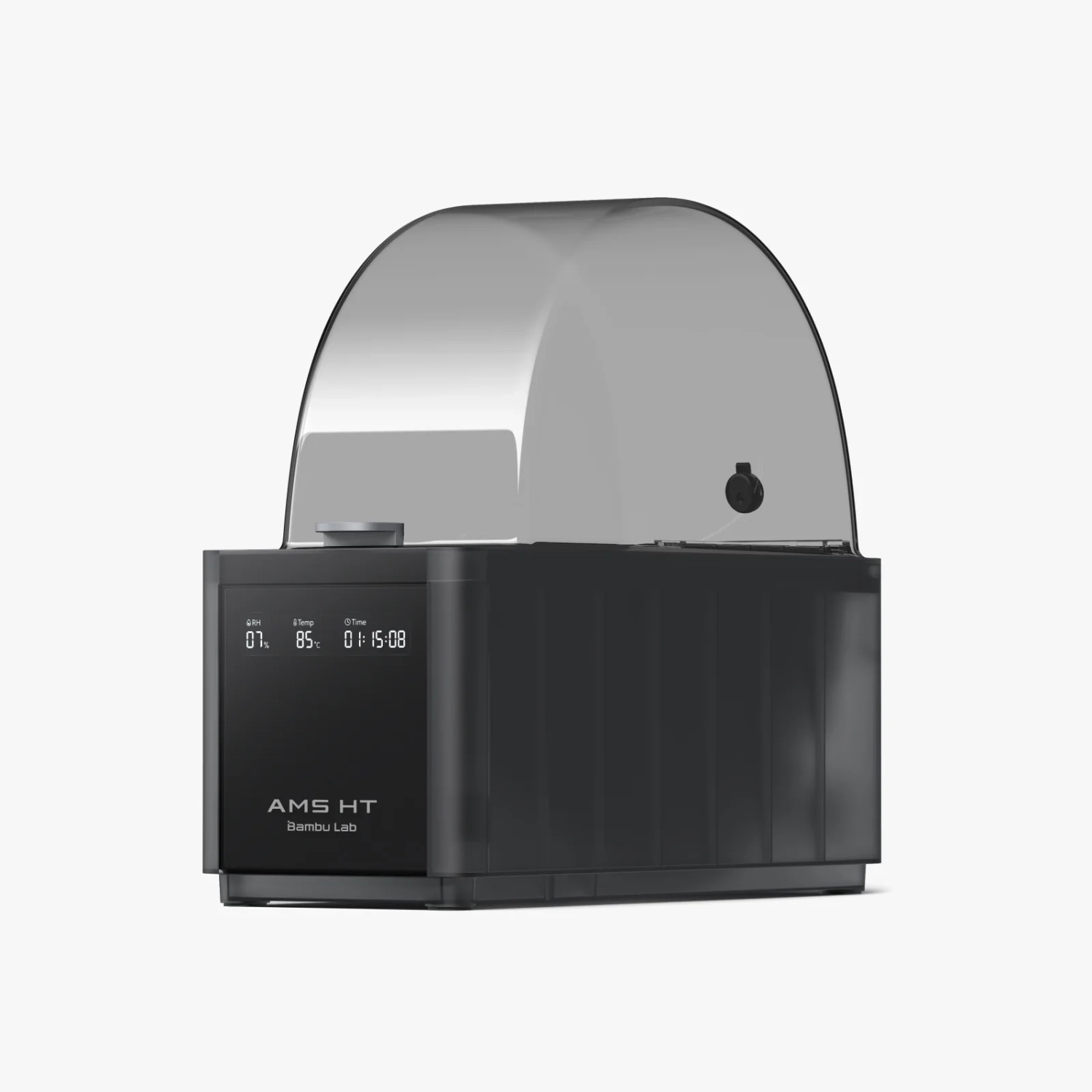

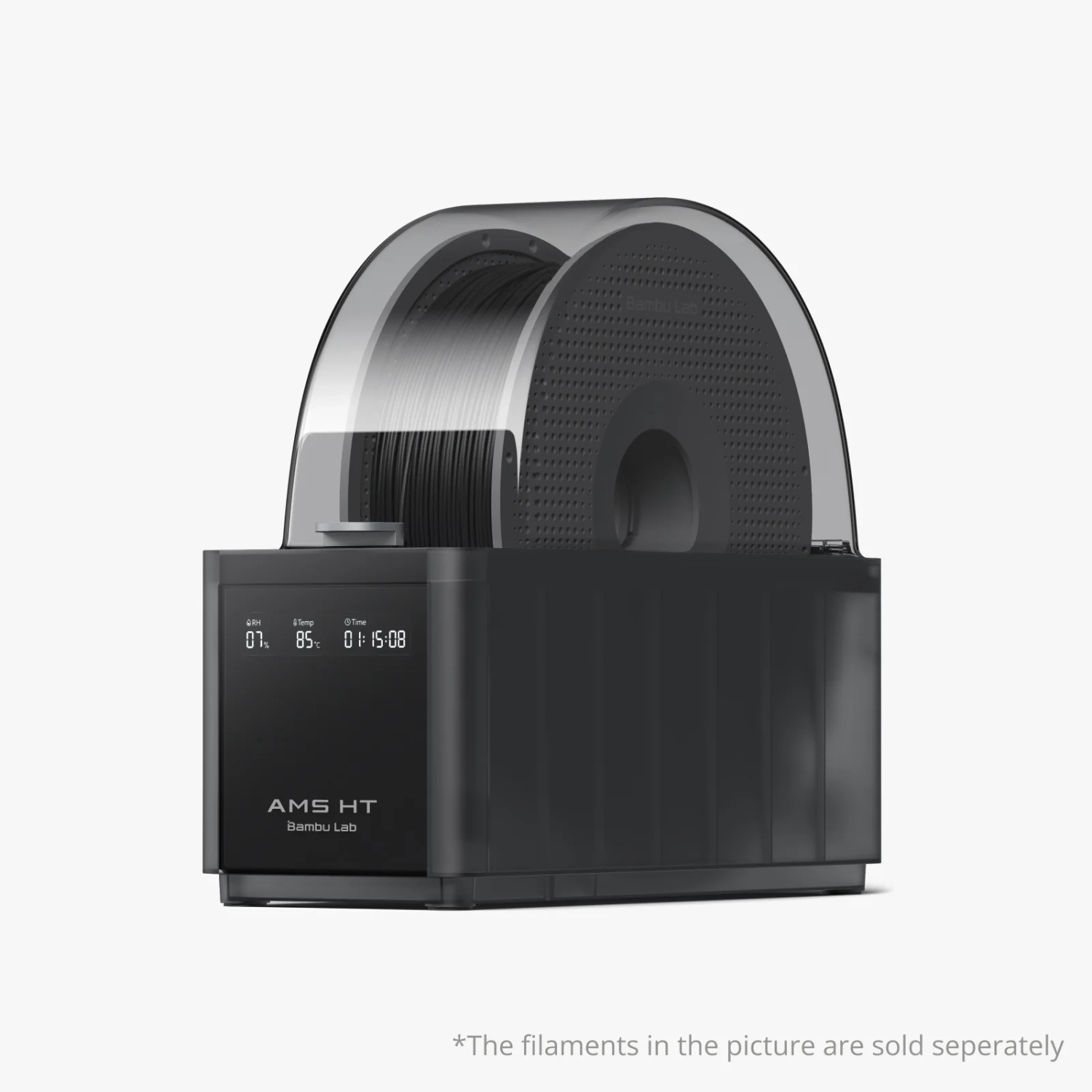

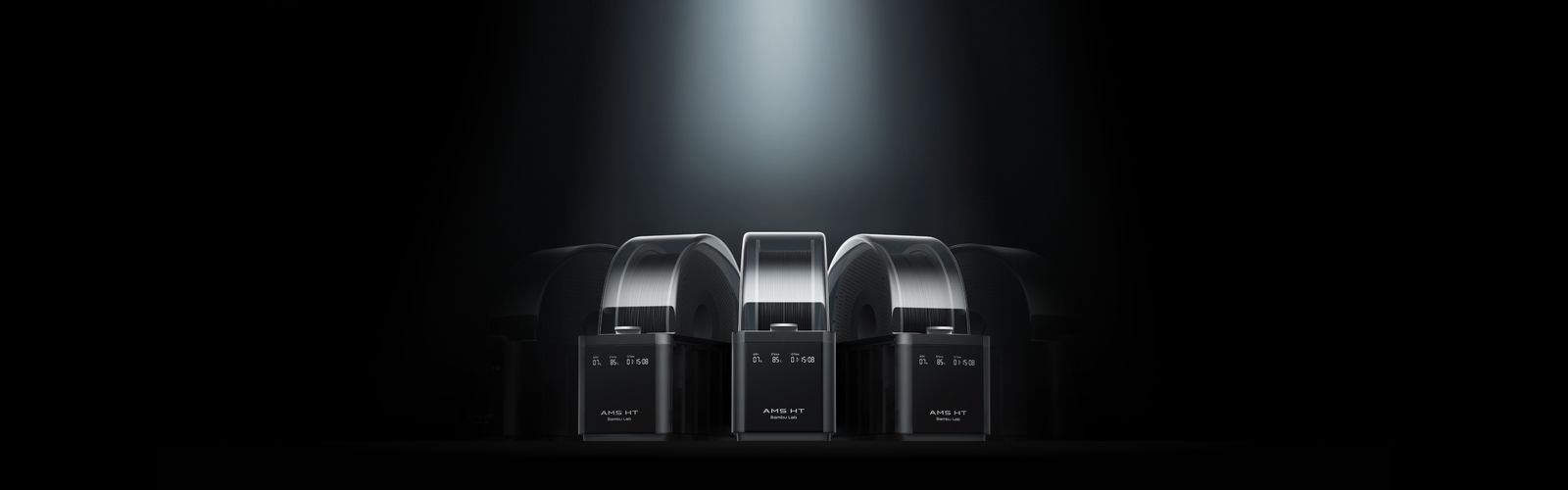

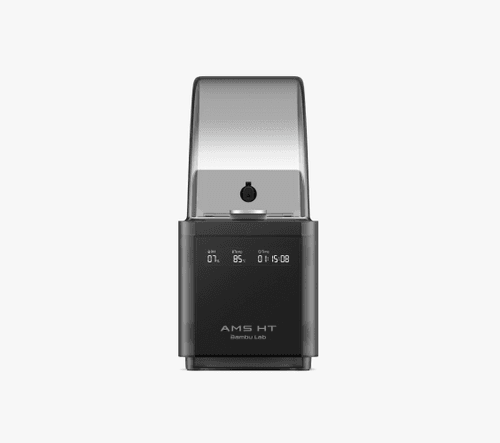

Bambu Lab AMS HT

Specialized for High-Performance Materials
24-Colors/ Materials
Serial connect up to 4 AMS 2 Pro & 8 AMS HT, total of 24 filaments
Electro-Magnetic Air Vent
Fast filament drying & air-tight filament storage
85°C Drying Temp
Specialized for high-performance filament drying
Brushless Motor
60% faster feeding speed

Engineered To Better Dry & Use High-performance Filaments

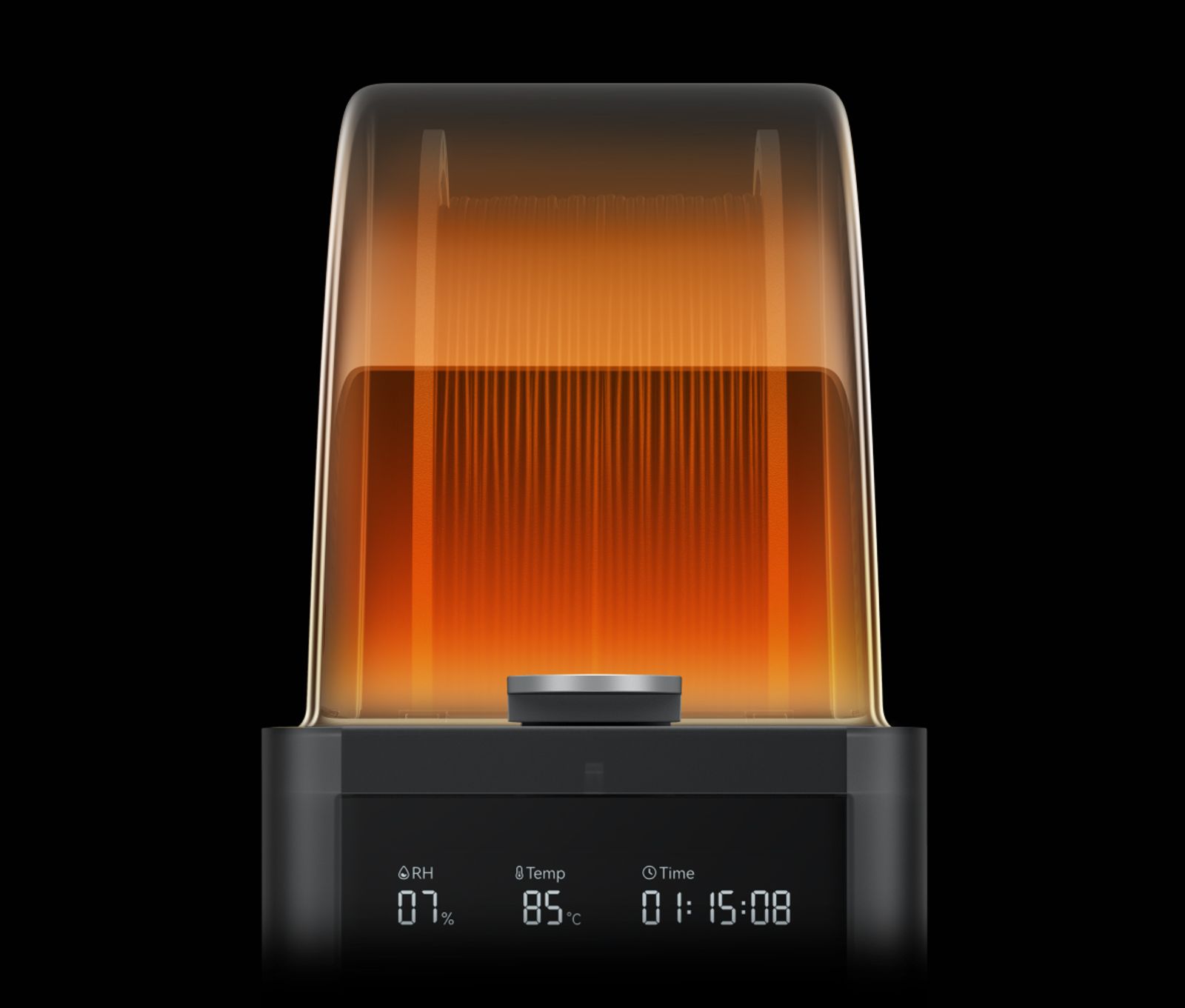

High-temp Drying
Drying temperature up to 85°C, optimized for high-temperature materials.
High-temp Drying High-temp Drying

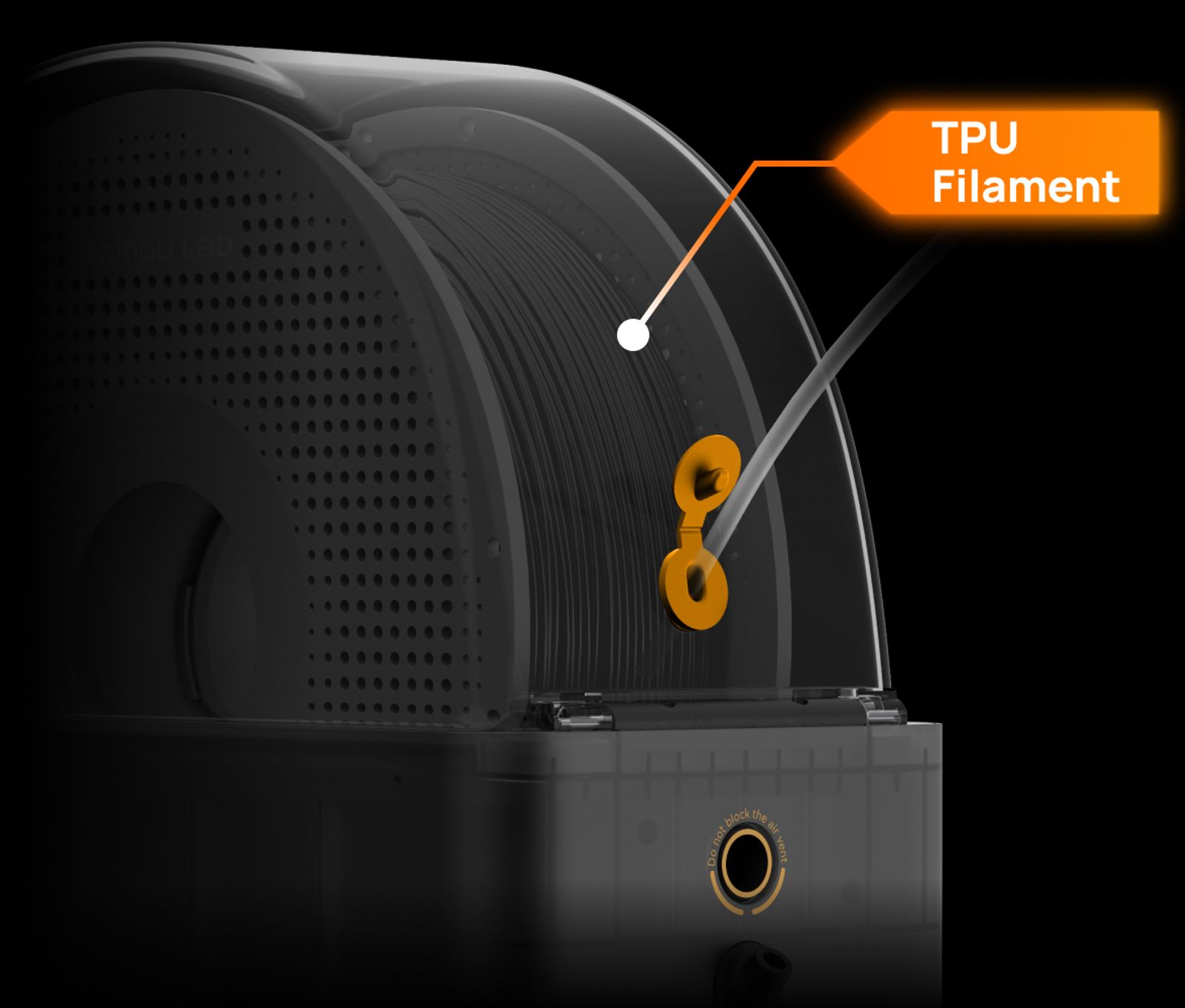

Bypass Outlet
Independent filament outlet designed for soft or brittle materials.
Bypass Outlet Bypass Outlet

Dry Filament Quickly and Intelligently

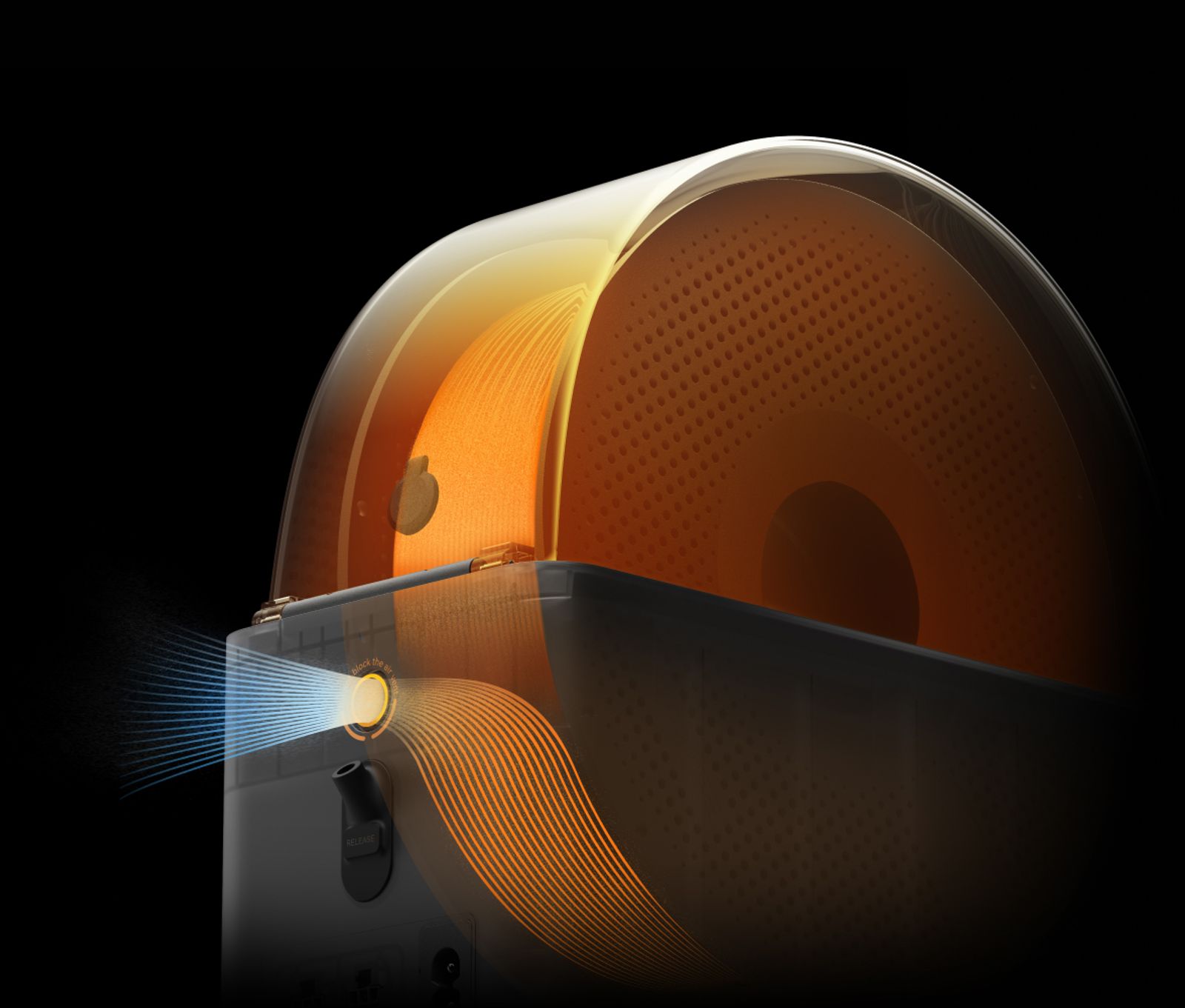

Electro-Magnetic Air Vent
Activate the air vent based on temperature and humidity readings to effectively speed up drying.
Electro-Magnetic Air Vent Electro-Magnetic Air Vent
Auto-rotate Drying
During the drying process, the filament spools rotate automatically to ensure more even drying.

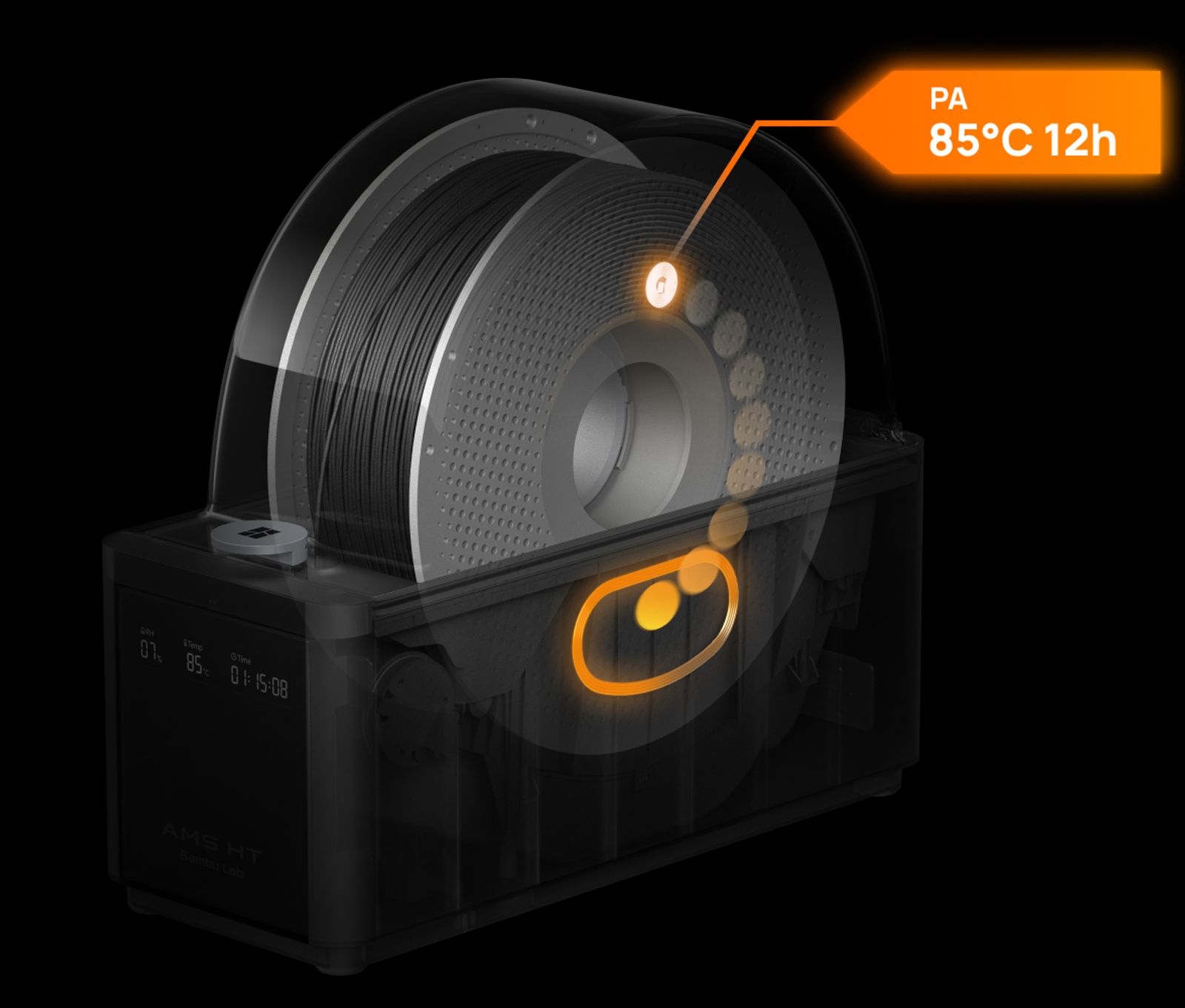

RFID Sync
AMS HT uses RFID to auto-match drying settings for Bambu official filaments, no manual input needed.
RFID Sync RFID Sync

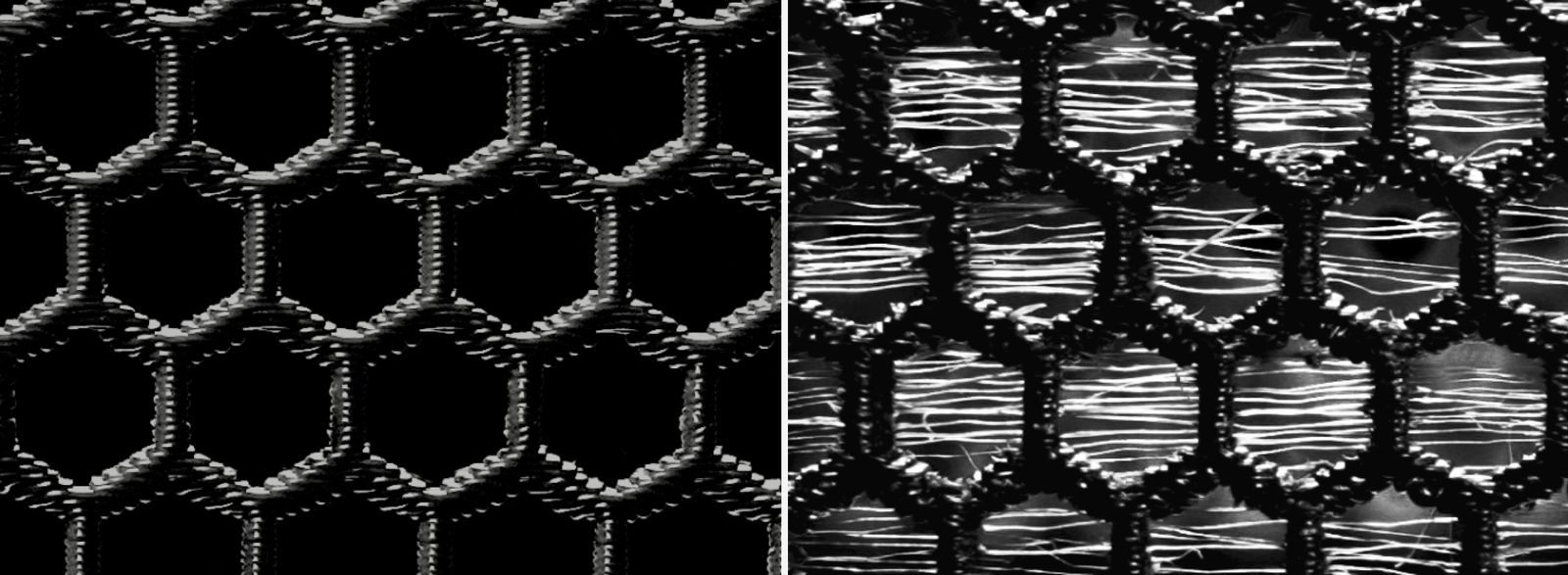

Dry
Moist
Bambu PET-CF

Evolved, Polished Design Details

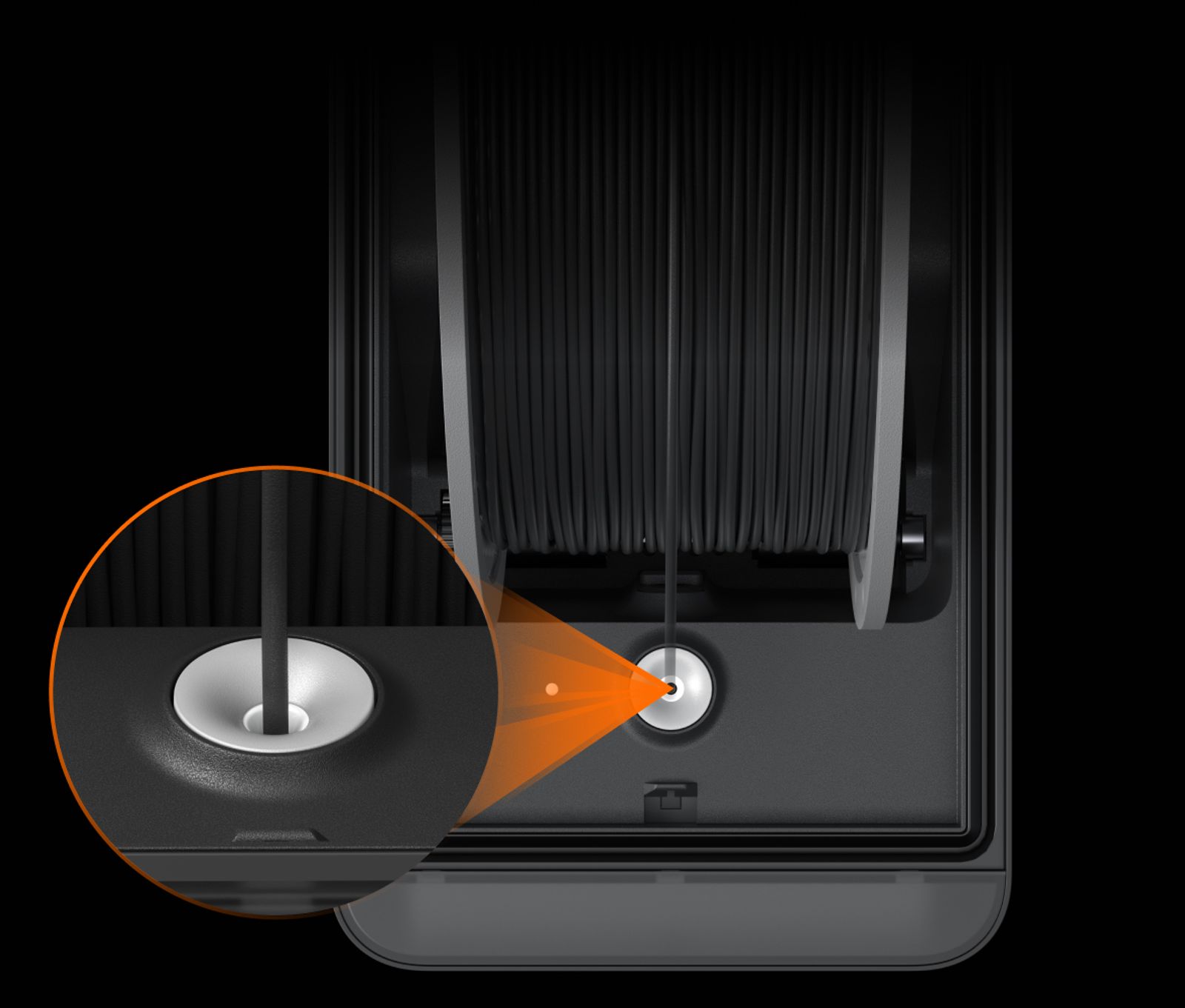

Ceramic Inlet
Ceramic filament inlets with Vickers hardness of 1200 significantly enhances durability.
Ceramic Inlet Ceramic Inlet

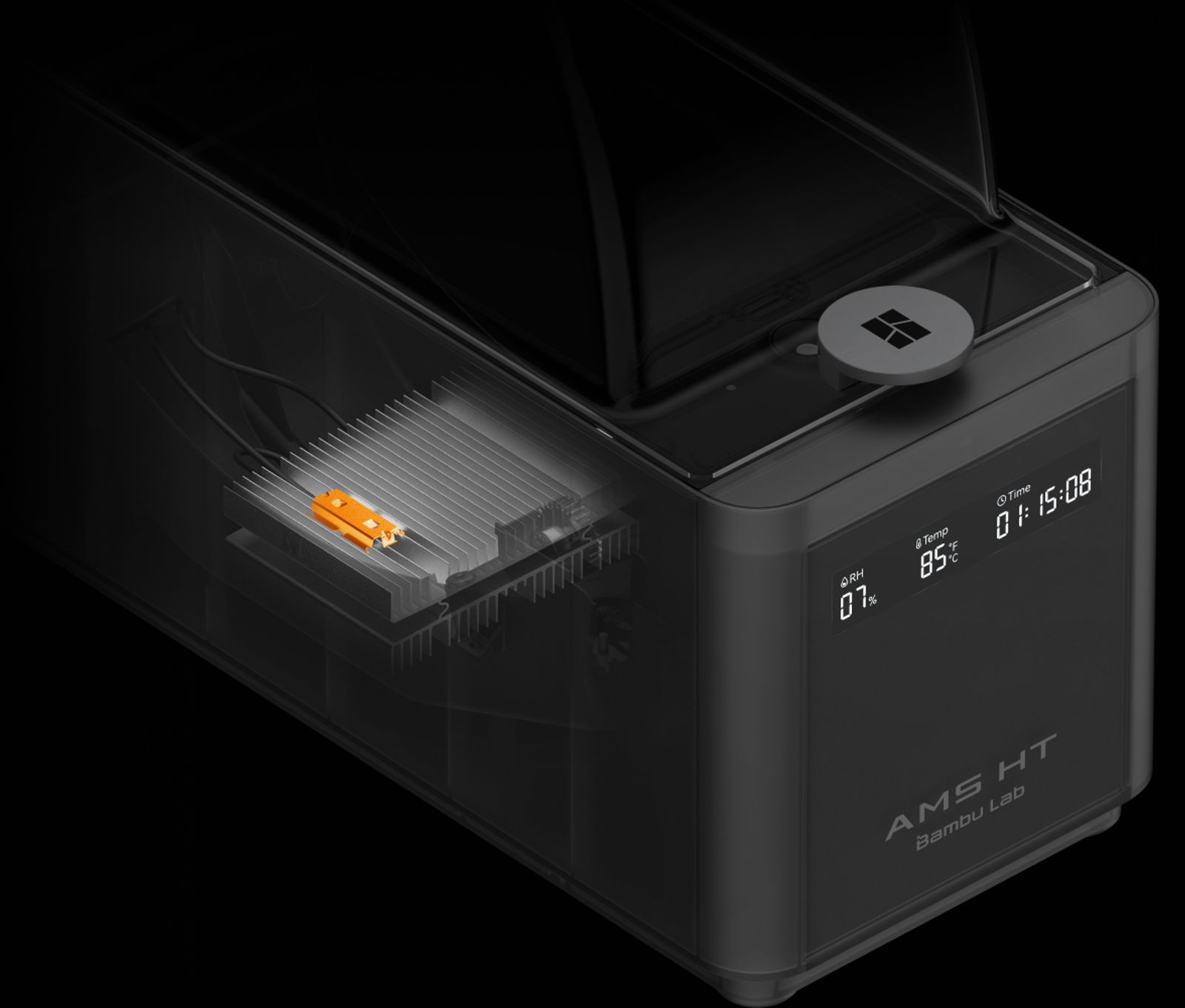

Over Temperature Protection
Accurate temperature sensor and physical failsafe for safe, precise heating.
Over Temperature Protection Over Temperature Protection

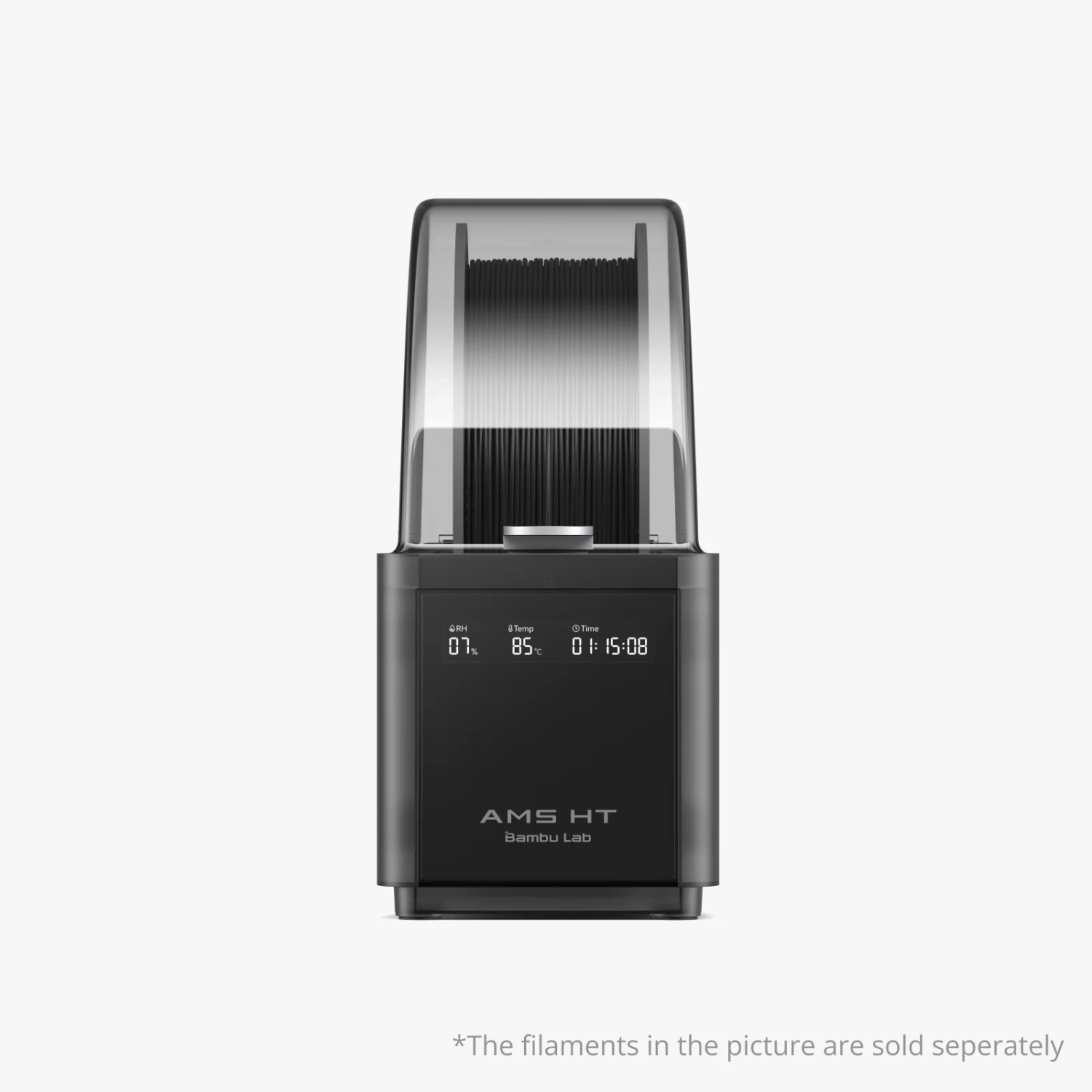

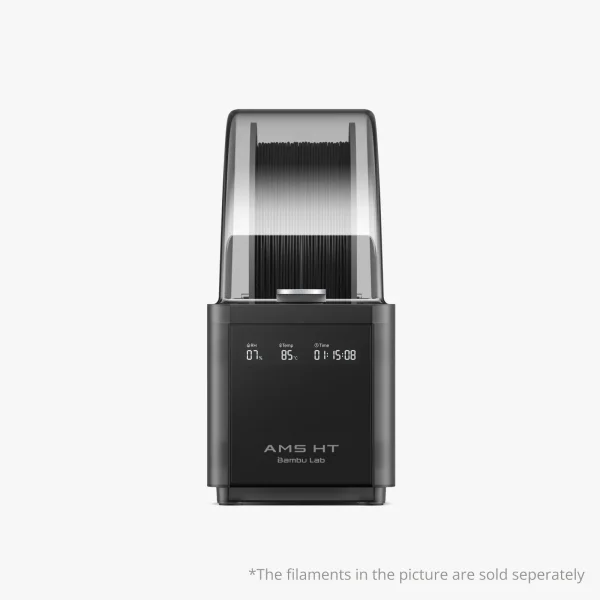

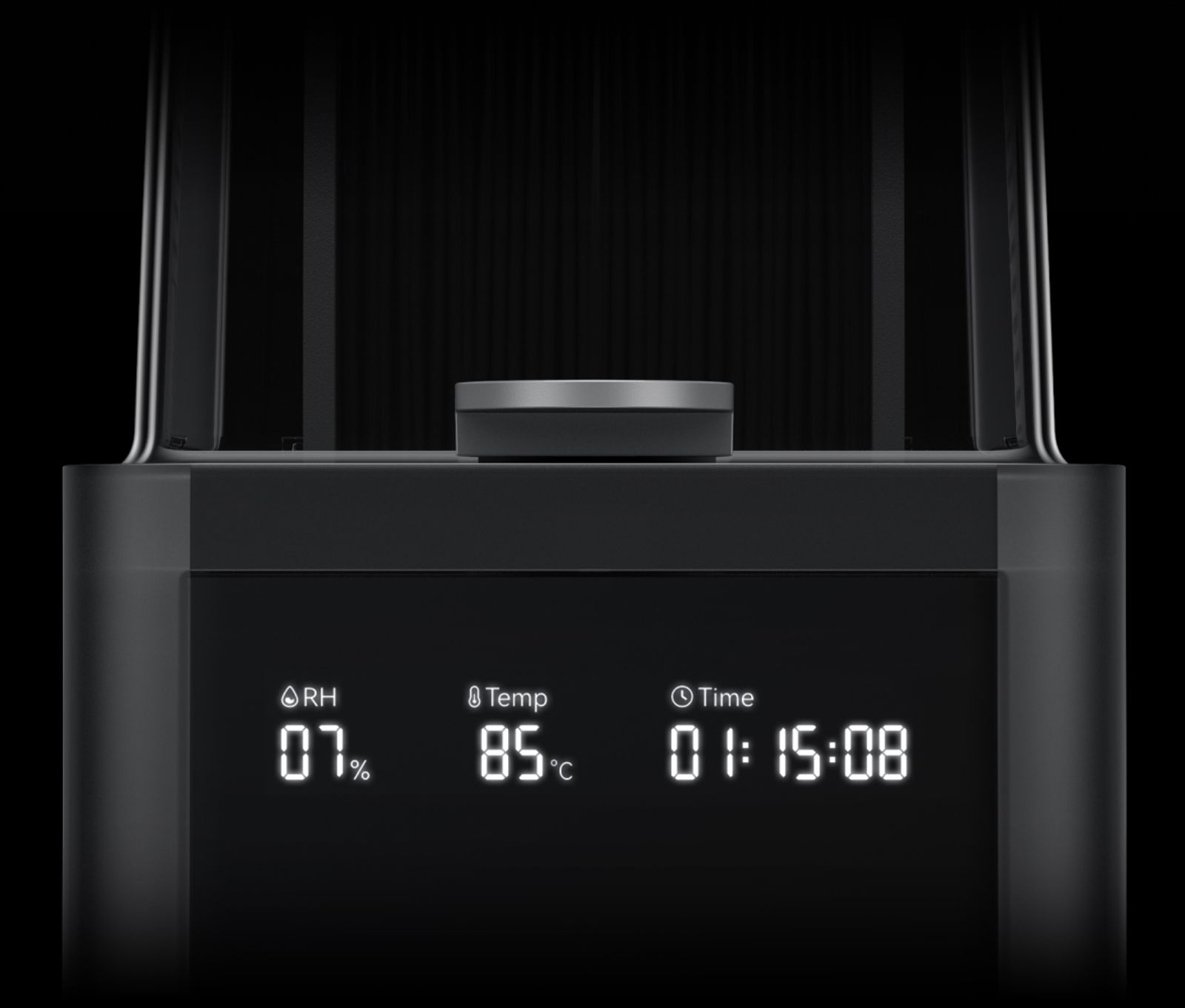

Status Display
Clear digital display for easy monitoring of drying status.
Status Display Status Display

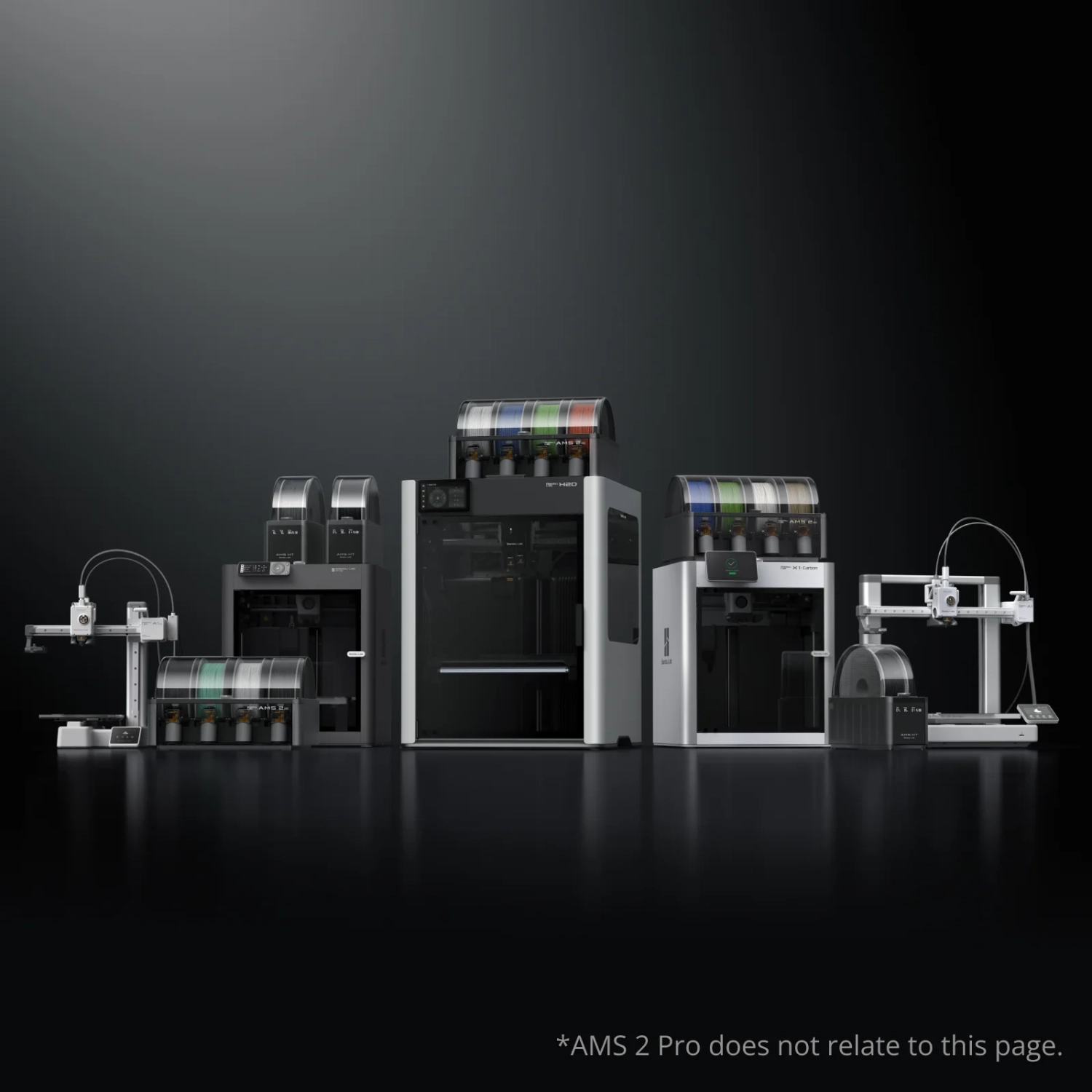

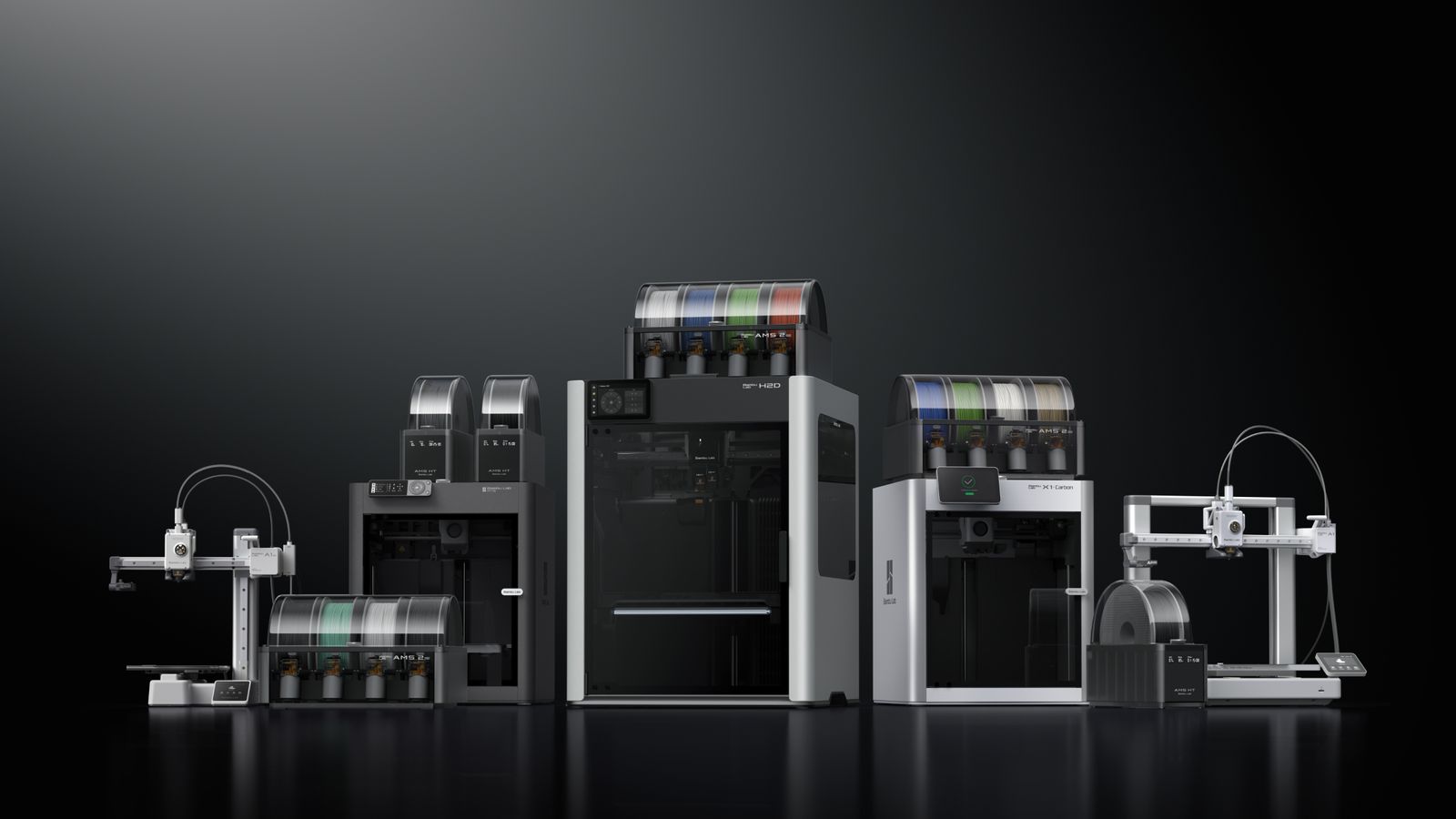

Compatible With All Bambu Lab Printers
The AMS HT will be compatible with all Bambu Lab products

AMS HT Specs
Item Specification
Body Dimensions 114*280*245 mm³
Net Weight 1.21 kg
Housing Material PC/PA
Flame Retardant Grade UL 94 V-0
Screen Supports displaying real-time temperature and humidity, and remaining drying duration.
Printing Filament Supported PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, Bambu PLA-CF/PAHT-CF/PETG-CF/Support for PLA/PETG, and TPU for AMS.
Bypass Filament Outlet: TPE, generic TPU, Bambu PET-CF/TPU 95A, and other filament that contains carbon fiber or glass fiber.
Filament Not Supported PVA (damp), BVOH (damp)
Filament Diameter 1.75 mm
Spool Dimension

Width: 50 mm-68 mm

Diameter: 197 mm-202 mm

RFID Identification Supported
Filament Odometry Supported
Drying Maximum Temperature 85 ℃
Filament Supported PLA, PETG, Support for PLA/PETG, ABS, ASA, PET, PA, PC, PVA, BVOH, PP, POM, HIPS, Bambu PLA-CF/ PAHT-CF/ PETG-CF, and TPU for AMS
Active Moisture Discharge Supported
Rotating Drying Mode Supported
Sealed Storage Supported
Top Lid Open Detection Supported
Temperature and Humidity Detection and Maintenance Supported. Real-time information can be displayed on the screen, printer UI, Bambu Studio, and Bambu Handy.
Voltage

DC: 24 V

AC: 100 V–240 V~, 50 Hz/60 Hz

Average Power 150 W

What's in the Box
Bambu AMS HT

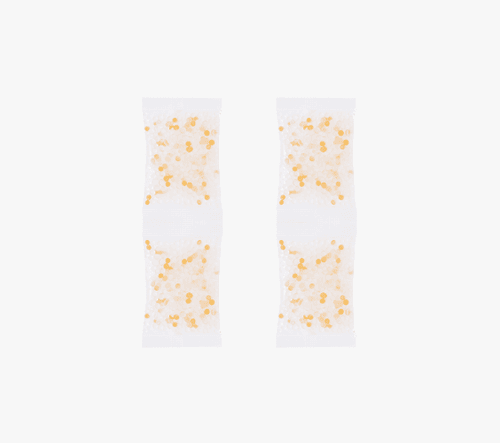

Desiccant

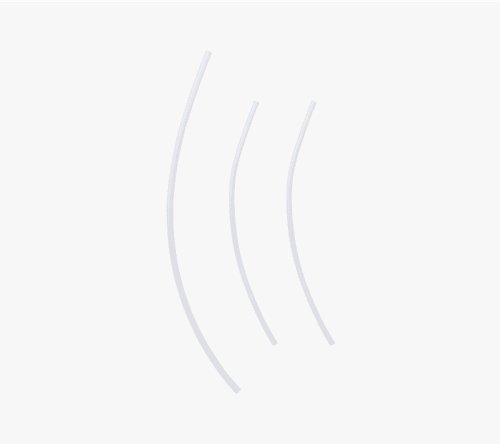

PTFE Tube

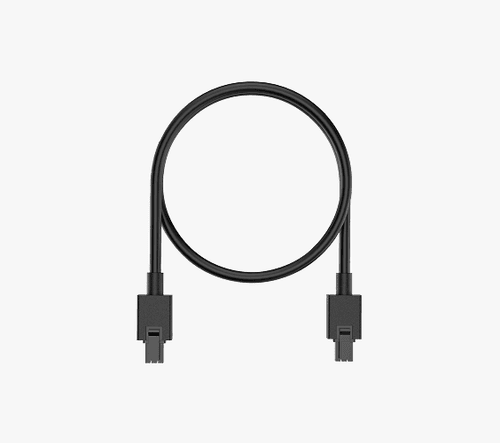

Bambu Bus Cable-6 Pin

FAQ
1.What is the difference between the two discharge ports on the back of the machine?


The port at the rear of the top cover is specifically for TPU filament. Due to the softness of the TPU filament, it is easy to fail when using the AMS 2 Pro automatic feeding function. When using the TPU, insert it into the AMS HT and ensure the material tray rotates in the correct direction. Insert the material tube into the TPU output port and manually push the filament through the PTFE tube until it is fully loaded into the extruder.

Note: When using TPU, AMS HT cannot use the automatic feed and return function, but can be used as a drying box to prevent material moisture.

2.Can the AMS HT be used with the X series and P series printers?


MS HT compatibility with X1 and P1 printers will be added through an OTA update by the end of April.

If only connecting one AMS HT to a X or P series printer, a filament buffer is required to be purchased separately. If connecting multiple AMS HT units,we recommend that you purchase an AMS Hub.

AMS HT compatibility with A1 and A1 mini printers will be added through an OTA update in Q3 2025.

3.Can I print and dry at the same time?


Printing while drying is not yet supported, including all the AMSs that are related to the on-going print job (eg. The AMSs assigned for auto-refill). However, you can dry filament in AMSs that are not assigned to the on-going print job.

4.How many AMS HT units can be connected to the X1 series and P1 series at most?


X1 and P1 series printers support up to 4 AMS HT connections at the same time.

5.Can the AMS HT be directly connected to the printer for drying?

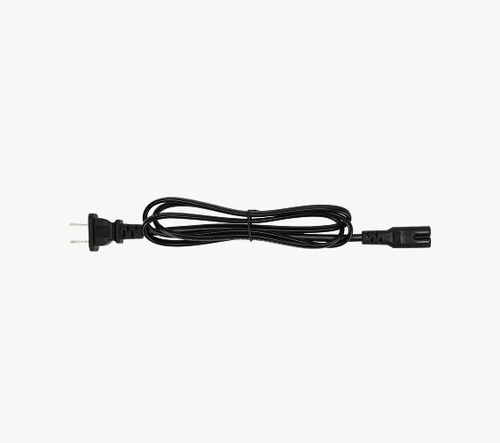

H2D and X/P/A series printers are connected to AMS HT and use drying function. Each AMS HT requires an external 220V power supply for drying It is not supported to draw power from the printer for drying (The power adapter is pre-included with the product package).

6.Does it support standalone drying without connecting to the printer?


When using the AMS HT drying function, the AMS HT must be connected to the printer via a 6-pin bus cable to ensure that the printer is powered on and set to filament drying mode.

The AMS HT cannot perform standalone drying without a connection to the printer.
