Overview
The Engine Model Components Kit contains all the necessary hardware components for assembling an Engine Model. To complete the assembly for an entirely functional piece, users also need to download the model files and 3D print the remaining parts.
To download the model files of
Engine Model and obtain detailed information, please visit the
Engine Model on
MakerWorld
Installation

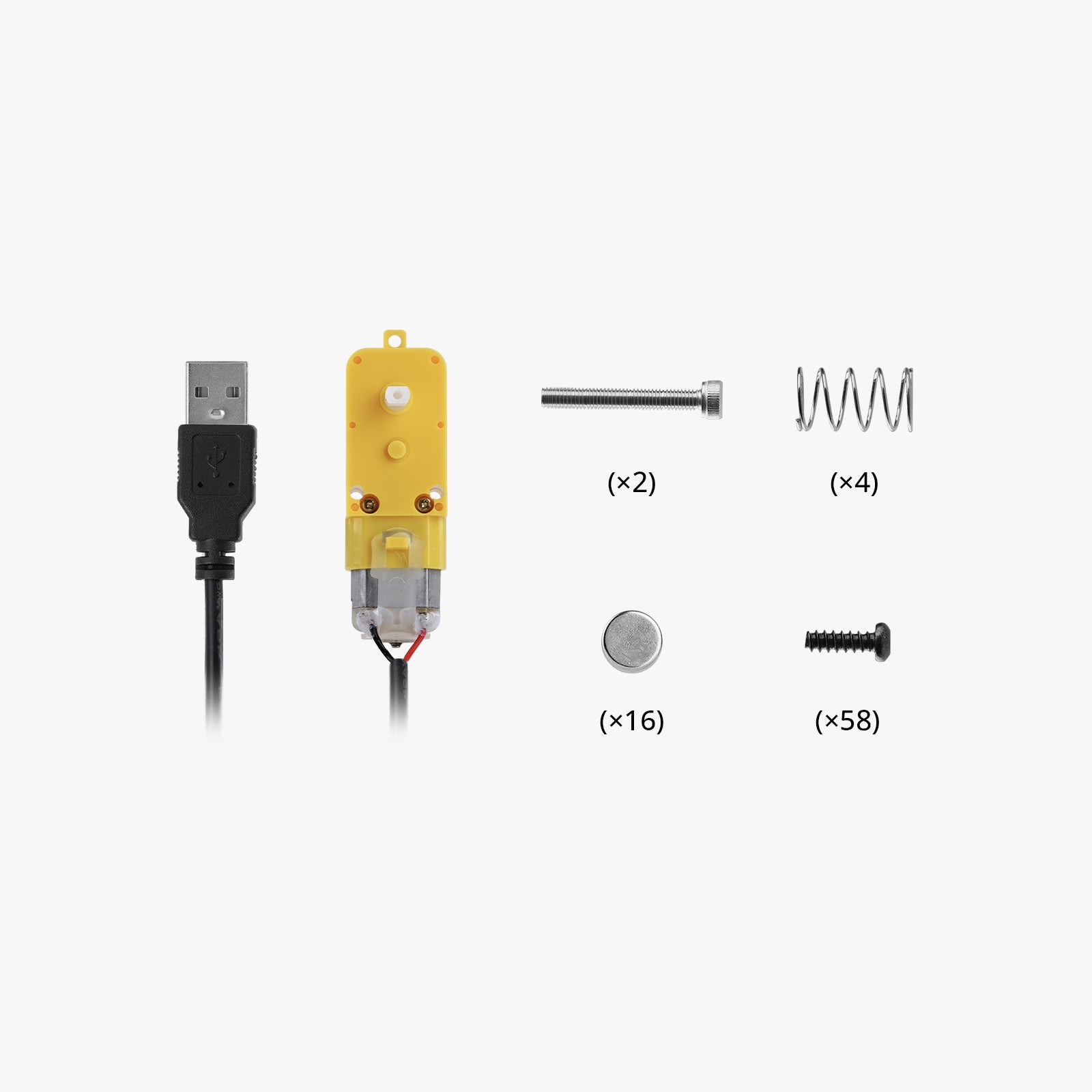

In the Box
1. TT Motor (DC5V 59RPM CCW Single Axis) * 1
2. BT2.6x8 SHCS Self Tapping Screw * 58±4 (44 pcs for assembly, remaining extras can be kept as spares)
3. M3x23 SHCS Machine Screw * 2
4. 4x2 mm Round Magnet * 16
5. 0.5x7x12 mm Helical Compression Spring * 4
Notes
1.
Please power the device using a USB power supply with the specified voltage.
2. Please test the operation of the mechanism by rotating the control handle before powering. After powering, verify the operational status of the motor and be cautious to prevent motor blockage.
3. It is recommended to use indoors at room temperature.
Product Specifications
| Voltage |
DC 5V |
Packaging Size |
100*69*35 mm |
|
|
79 g |
Gross Weight |
93 g |
