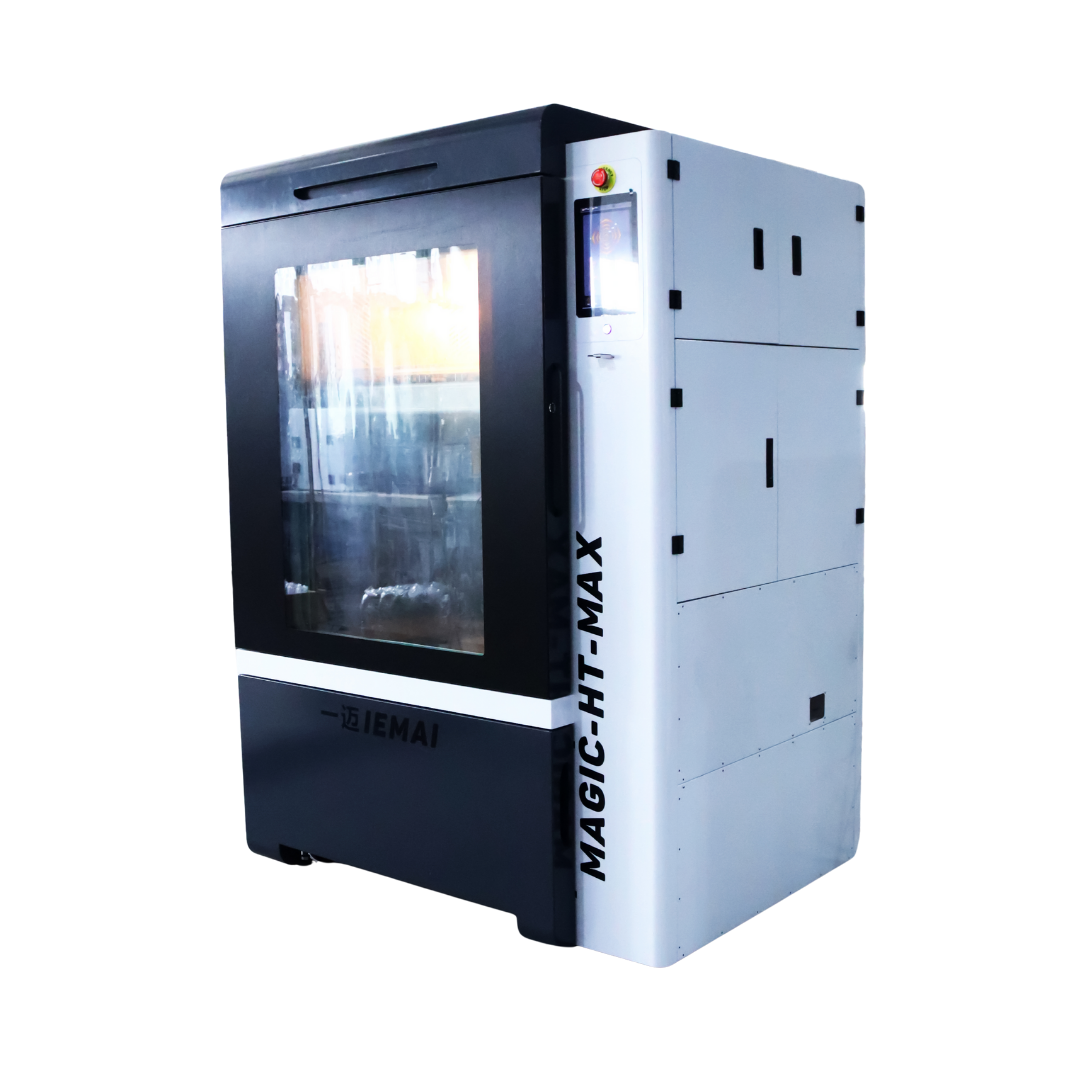

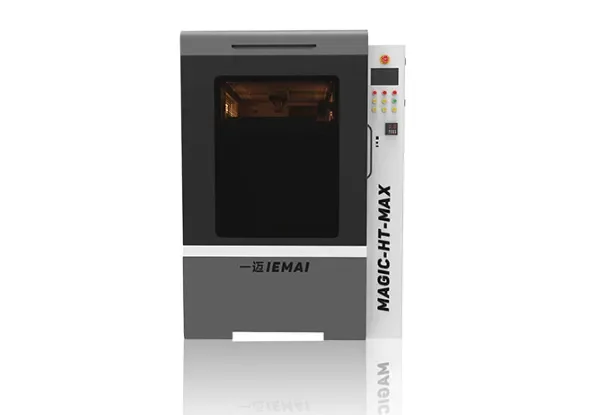

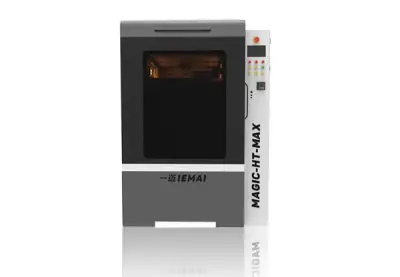

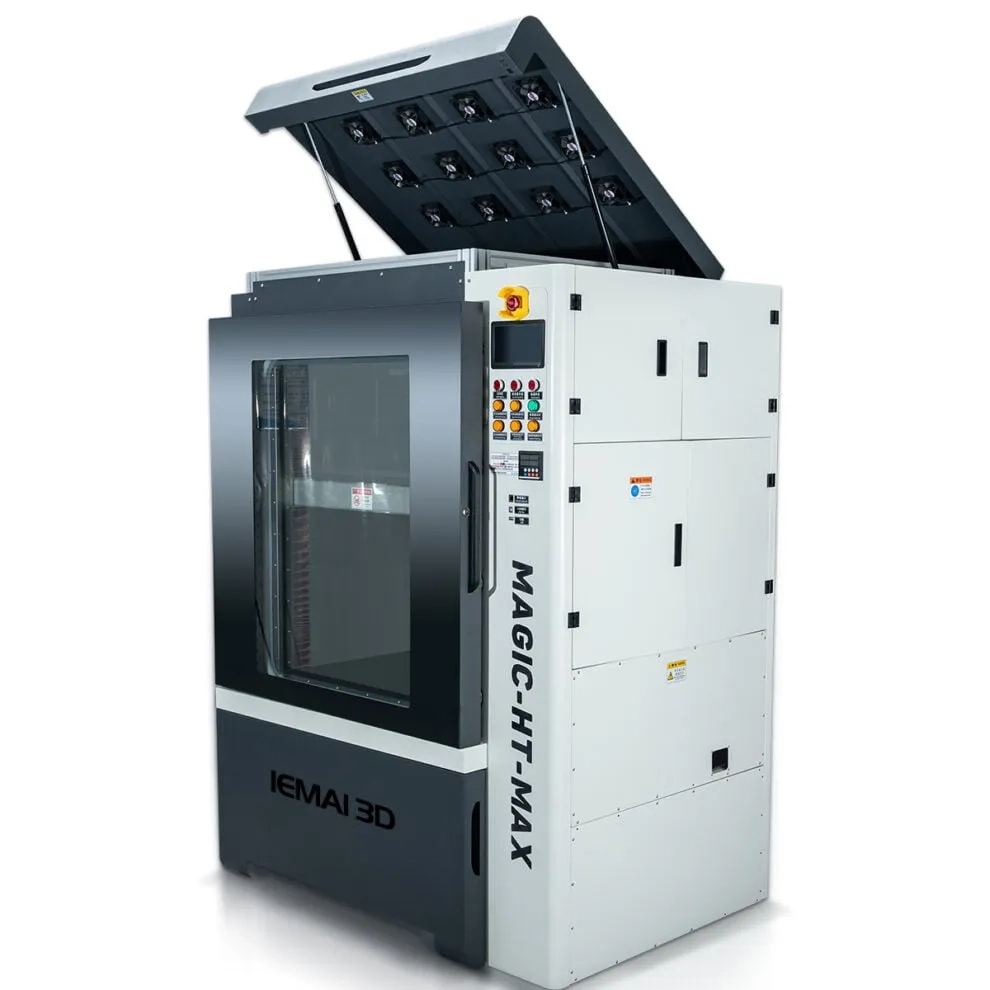

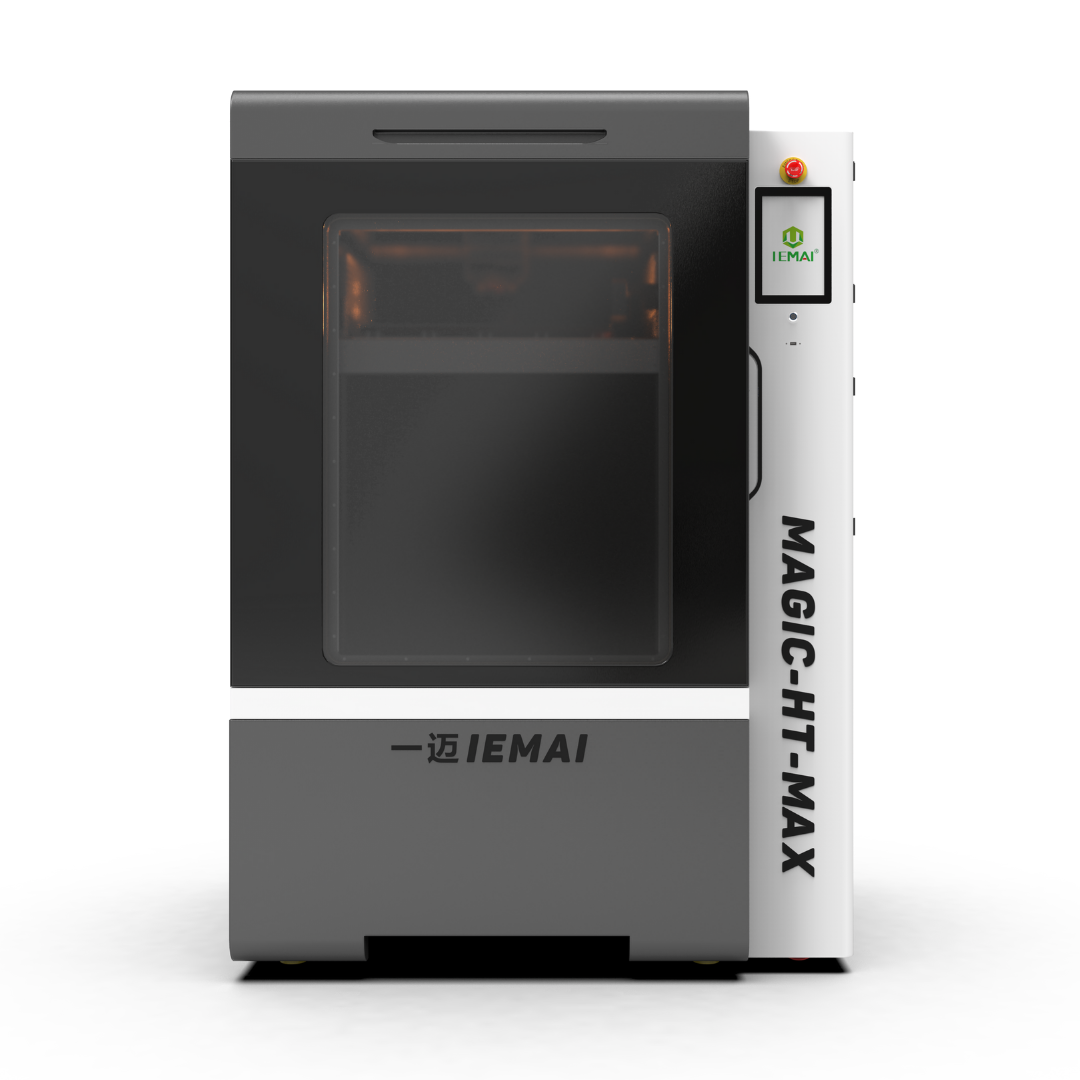

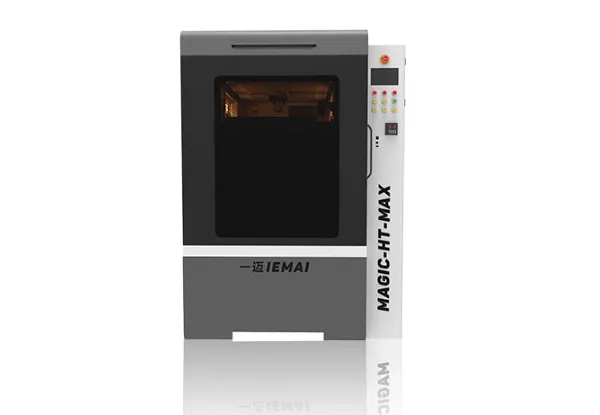

MAGIC-HT-MAX
Build Volume:500×500×700 mm
Printing Temperature: Max 500°C
Hot Bed Temperature::Max 200°C
Chamber Temperature:Max 150°C
Filament Box Temperature: Max 65°C
Performance:PEEK,PEKK,PEI 1010/9085,PPSU,PPS Etc
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA Etc
Composite:CF-PEEK,GF-PEEK,CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA Etc
Temperature System
Printing Temperature:Max 500℃
Hot Bed Temperature:Max 200℃, Vacuum Adsorption, Carbon Fiber Plate/Polymer Membrane
Chamber Temperature:Max 150℃
Filament Box Temperature:Max 65℃, Material Storage Humidity:Min 15% RH
Temperature Secure Function:Temperature PID Auto Tuning,Temperature Stability ±2℃
Material System
1.75mm Diameter 3D Printing Filament(Thermoplastic)
Performance:PEEK,PEKK,PEI 1010/9085,PPSU,PPS etc, Dimensional Accuracy 100mm±0.2mm
Composite:CF-PEEK,GF-PEEK,CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc, Dimensional Accuracy 100mm±0.15mm
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA etc, Dimensional Accuracy 100mm±0.15mm
Support:E-Water,E-Remove,HT-SP etc
Extrusion System
Printing Speed:Max 150mm/s
Acceleration:1000mm/s²
Flow:16.5mm³/s(0.6mm Nozzle,100mm/s Speed,Under Condition of PLA Printing)
Cooling Method:Water Cooling(Heat Dissipation Zone)/Air Cooling(Print Part Cooling)

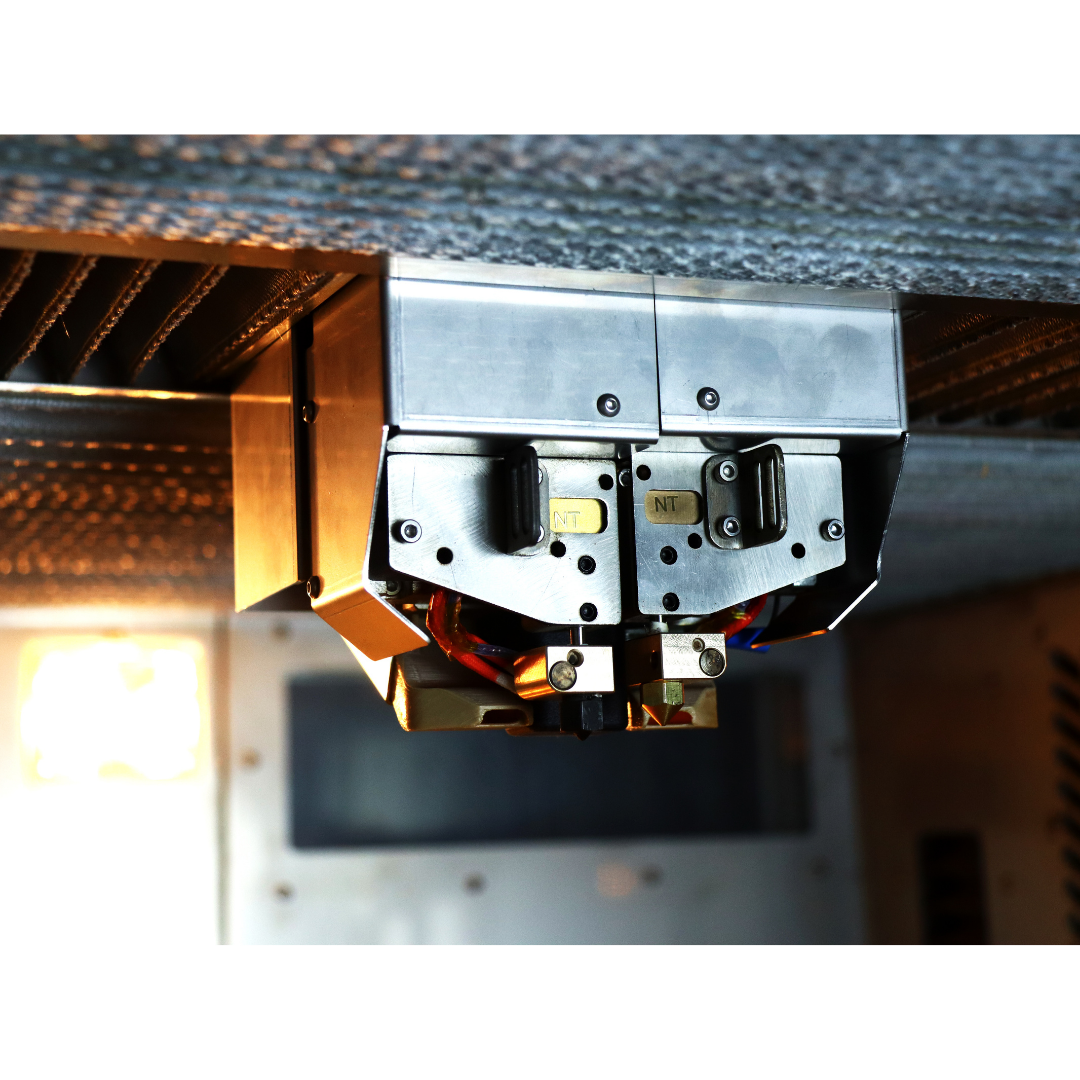

Nozzle Quantity:2 Nozzle Modular,Electric Individual Lifting
Nozzle Size:0.4mm(Standard)/0.6mm(Optional)
Nozzle Material:Copper Alloy(Pure Materials)/Hardened Steel(Fiber Reinforced Materials)
Recommended Layer Thickness:0.05-0.3mm
Motion Hardware
XY Axis Motor:Closed Loop Drive Motor
Z Axis Motor:High Torque Stepper Motor
XYZ Axis Transmission:Ball Screw & Linear Guide
Positioning Accuracy:X/Y:2.5μm Z:0.78μm
Main Control Hardware

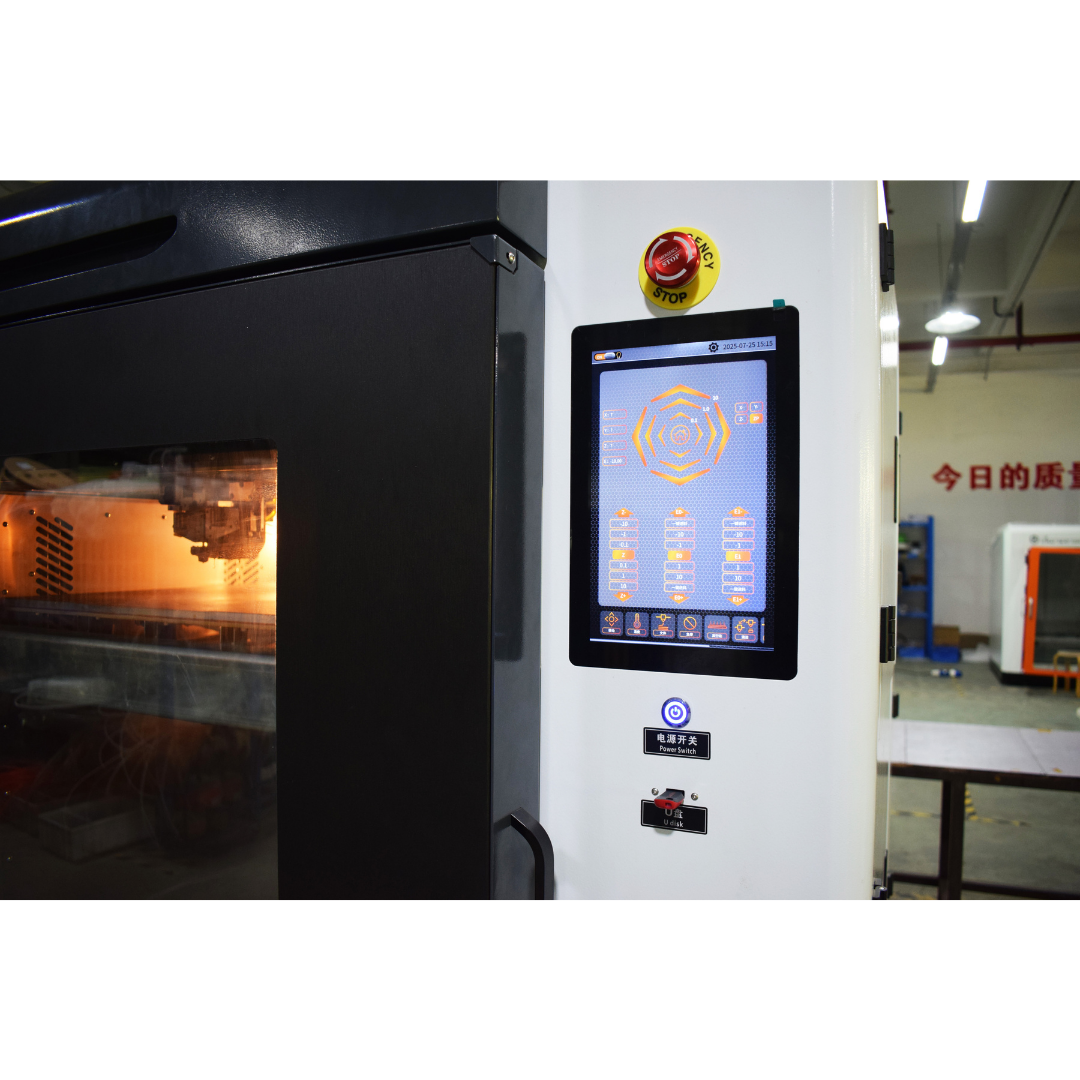

Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:4GB
Internal Memory:16GB
Motion Control Chip:STM32 ARM Cortex-M4 180MHz
Logic Control Chip:RK3588S Octa-Core 64Bits 2.4GHz+1.8GHz
Software Functionality
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:
Power Failure Recovery, Filament Detection, Automatic Leveling, Automatic Switch-Off, Material Feeders Synchronize Control, Dual Nozzle Individual Lifting, Dual Nozzle XYZ Distance Calibration, Automatic Cleaning Nozzle, Vacuum Adsorption Platform, Temperature PID Auto Tuning, Cloud Remote OTA
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
Cloud Monitor and Control(Free)
Local Network Transmission and Control (Applicable to Confidentiality Enterprises,USD 980 Permanently Authorize 3 Accounts,USD 120 for Each Additional Account)
Motion Control Firmware:Optimized Firmware Based On Marlin 2nd Development
File Formats:STL,OBJ,3MF Etc
Operating System:Windows10/11 64 Bits
Size and Weight
Build Volume:500*500*700mm
Machine Size:1080*1380*1950mm
Package Size:1300*1600*2300mm
Net Weight:750KG
Gross Weight:850KG
Electric Parameter
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 6500W
24 Hrs Average Power Consumption:4KW/H(PEEK Printing) 0.5KW/H(PLA Printing)
Packing List
Machine,Tool Kits,Start-up Material Sets,Spare Parts,Slicing Software(Free)
MAGIC-HT-MAX is specially designed for engineering plastic, with a temperature of 500°C extruder temperature and 200°C hot bed temperature and 150°C chamber temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the extruder which allow it to have simple maintenance and support the corporate print with water soluble material.
