Build Volume:310×310×410 mm
Printing Temperature: Up to 500°C
Hot Bed Temperature::Up to 200°C
Chamber Temperature:Up to 120°C
Extrusion System:Individual Lifting Liquid Cooling Dual Nozzle
Majority of the Materials on Market:PEEK, CF-PEEK, PEKK, CF-PEKK, PEI 1010/9085, PPSU, PC, CF-PC, PA, CF-PA, GF-PA, ASA, ABS, CF-ABS, PETG, HIPS, TPU, PLA, CF-PLA, PVA…
Specification
Principle: Fused Filament Fabrication (FFF)
Filament Diameter: 1.75 mm
Recommended Layer Thickness: 0.05 – 0.3 mm
Position Accuracy: X/Y: 12.5 μm Z: 1.25 μm
Printing Speed: 0-150 mm/s
Nozzle Diameter: 0.4 mm (Standard), 0.8 mm, 1.0 mm (Optional)
Heated Bed Material: Silicon
Air Filter: Activated Carbon Filter (Optional)
Technology Certification: CE, RoHS
Slicing Software: IEMAI 3D EXPERT, Cura, Simplify3D
Printing Platform:Carbon Fiber Plate, Quick Detachable
File Type: STL, OBJ, 3MF, GCODE
Data Transmission: SD Card, WIFI, USB
Operating System: Windows 64 Bit
Machine Size: 702 × 625 × 800 mm
Cabinet Size: 702 × 625 ×805 mm
Packing Size: 702 × 625 × 980 mm (Printer)
Packing Size: 702 × 625 × 980 mm (Cabinet)
Net Weight: 122 KG (Printer) + 77 KG (Cabinet)
Gross Weight: 150KG + 105KG
Power: 100~130 V (Need Transformer), 50~60 Hz 3000W (Printer)
100~130 V (Need Transformer), 50~60 Hz 50W (Cabinet)
Power: 200~250 V , 50~60 Hz 3000W (Printer)
200~250 V , 50~60 Hz 50W (Cabinet)
Suggest Operating Environment: 15-30 °C, Relative Humidity 10-90 %, No Condensation
Storage Temperature:25-55 °C, Relative Humidity 10-90 %, No Condensation
Features
Power Failure Recovery
Filament Detection
Automatic Switch-Off
Automatic Cleaning Nozzle
Dual Nozzle Modularization
Quick Detachable Platform

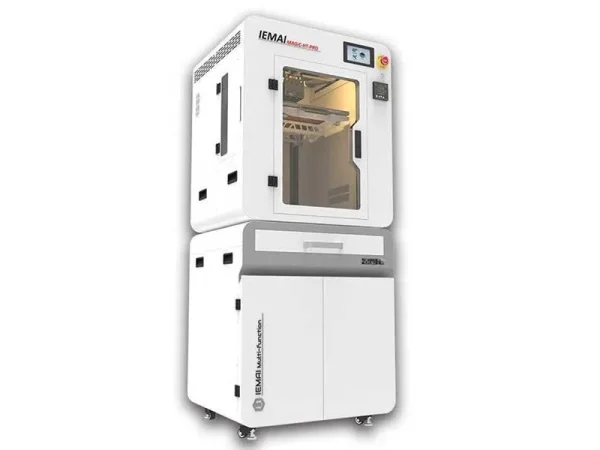

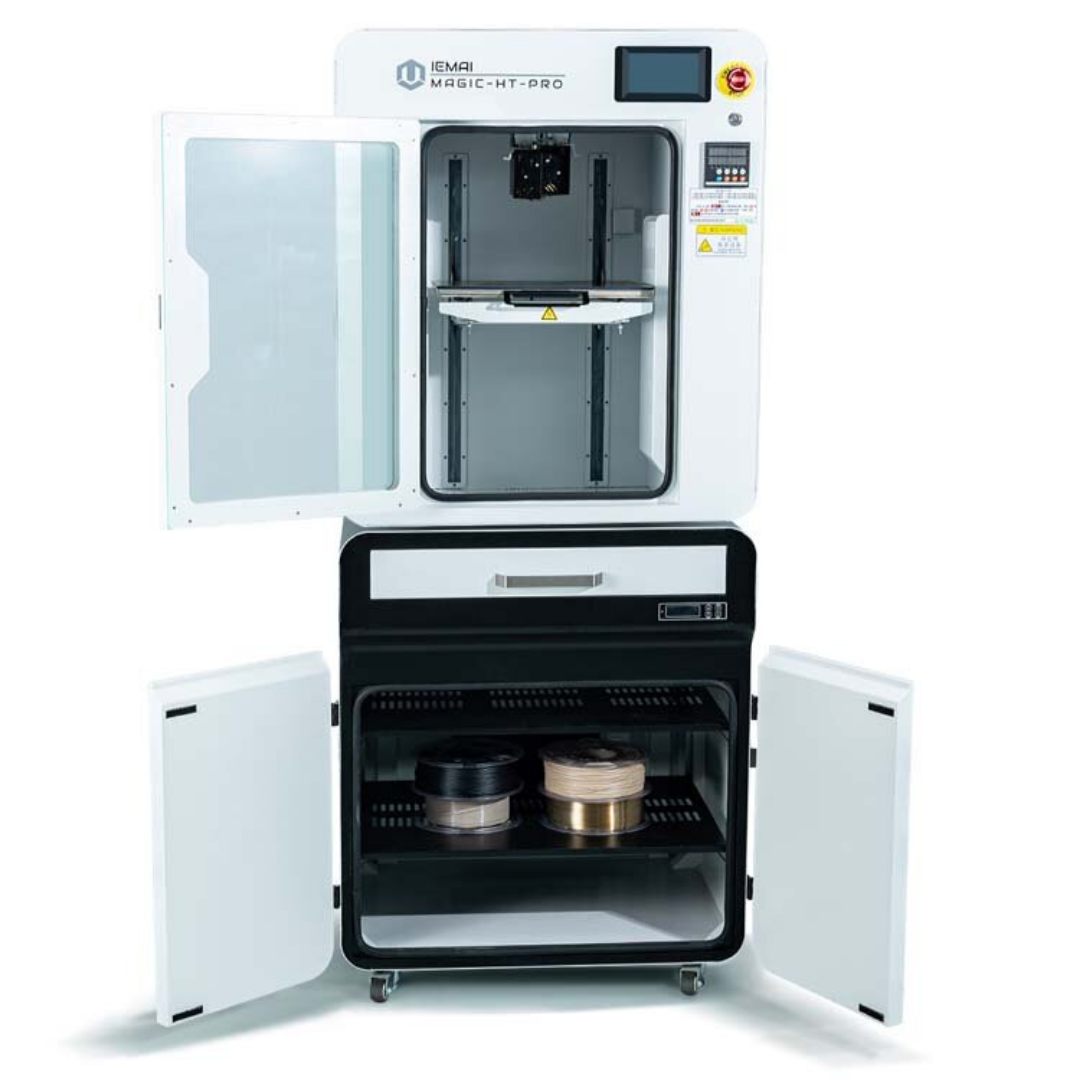

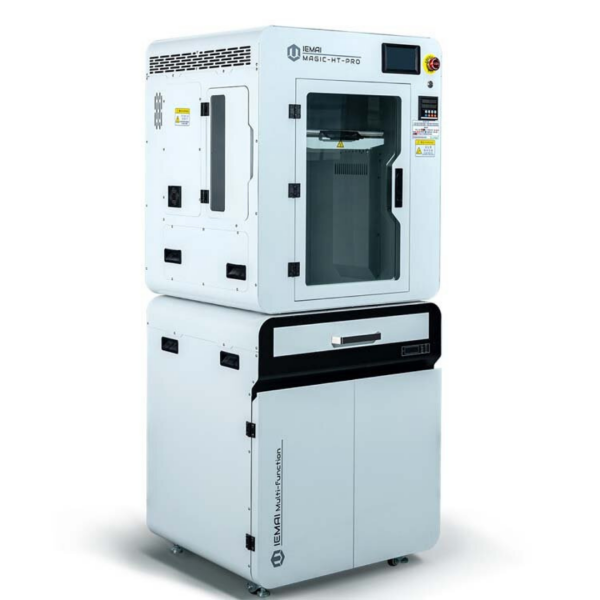

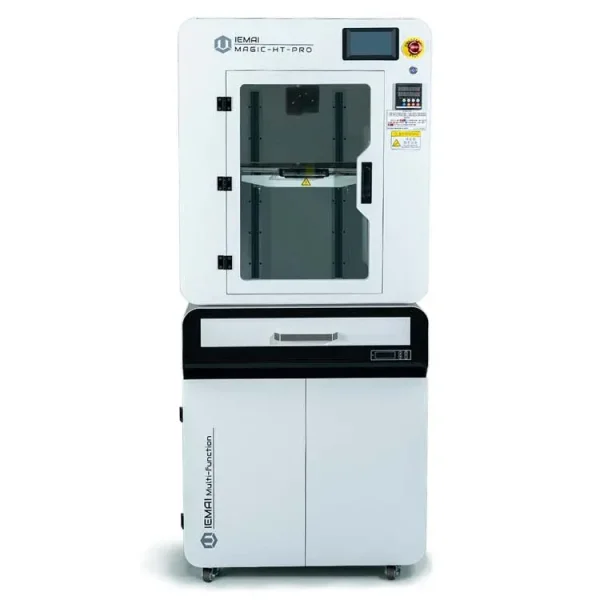

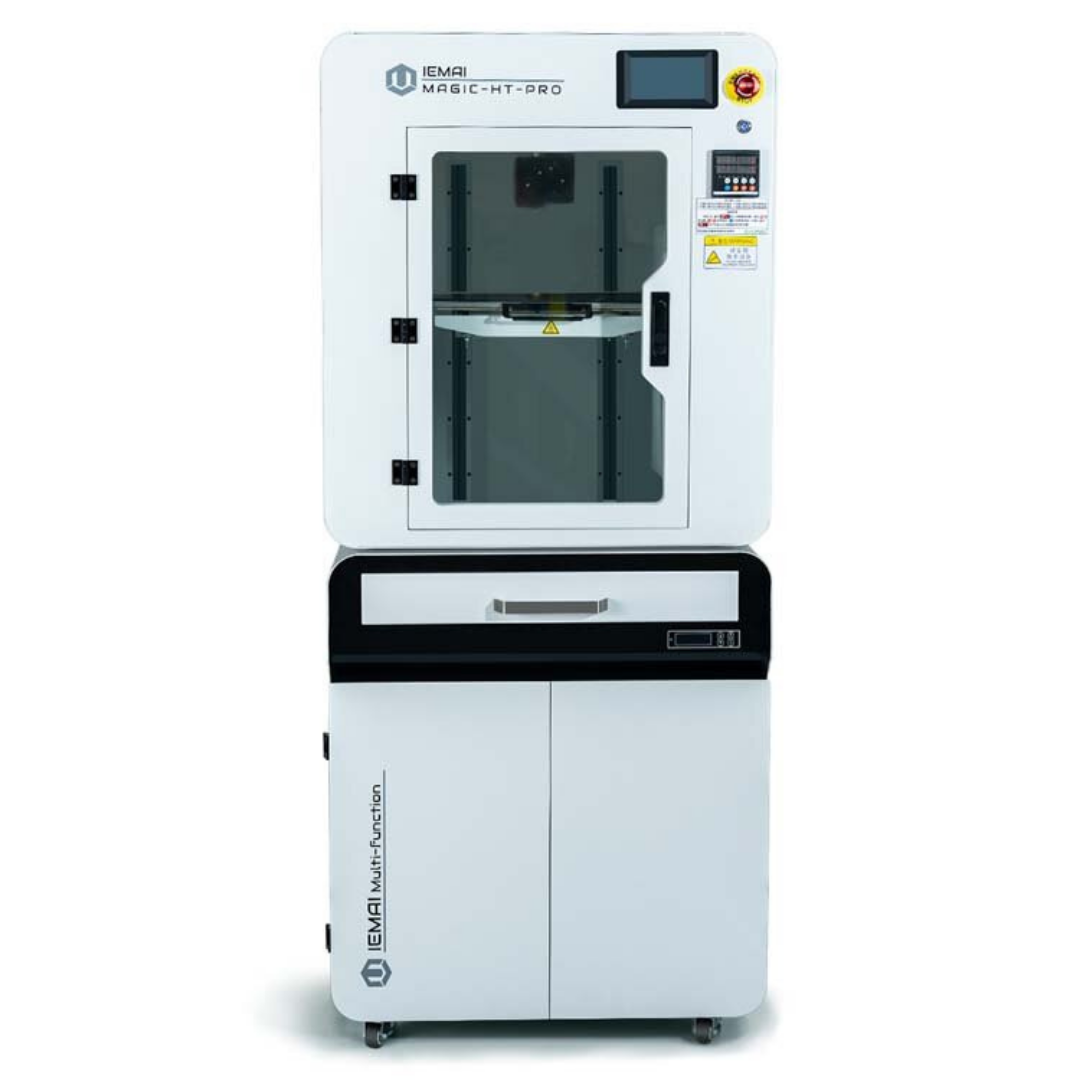

MAGIC-HT-PRO is specially designed for engineering plastic, with a temperature of 500°C extruder temperature and 200°C hot bed temperature and 120°C chamber temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the extruder which allow it to have simple maintenance and support the corporate print with water soluble material.
