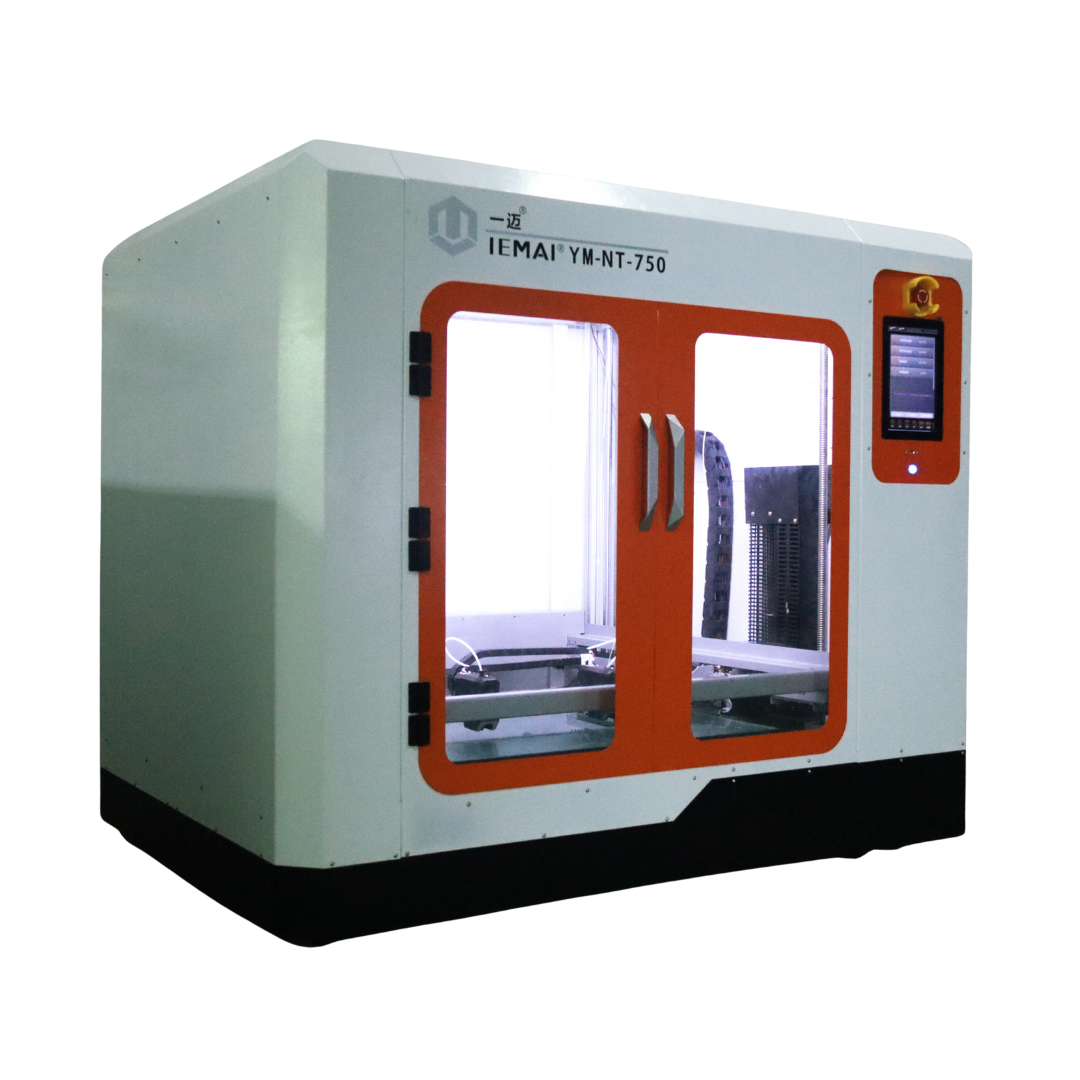

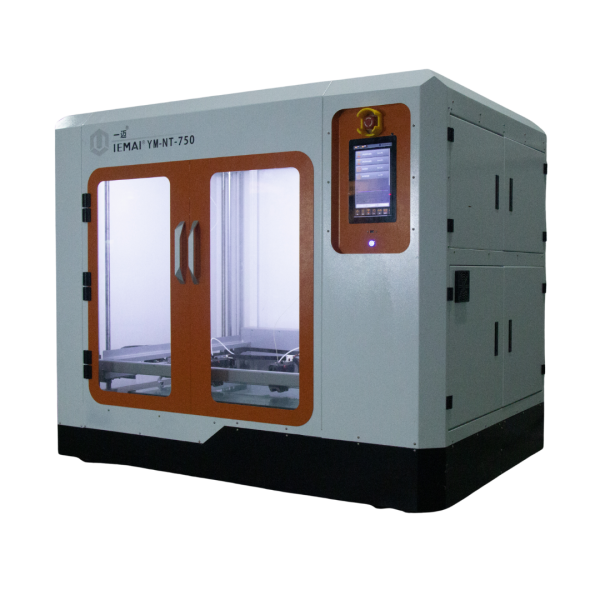

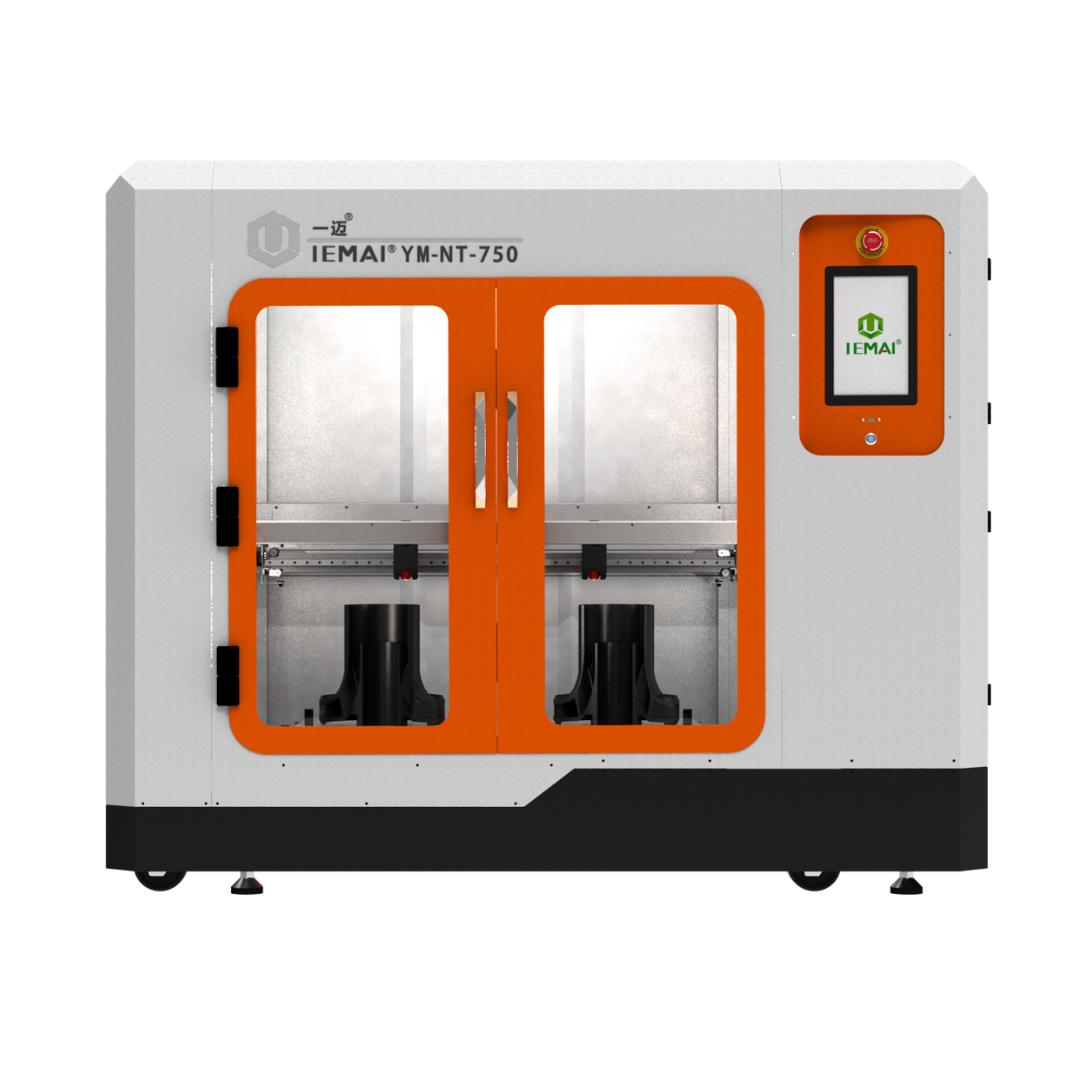

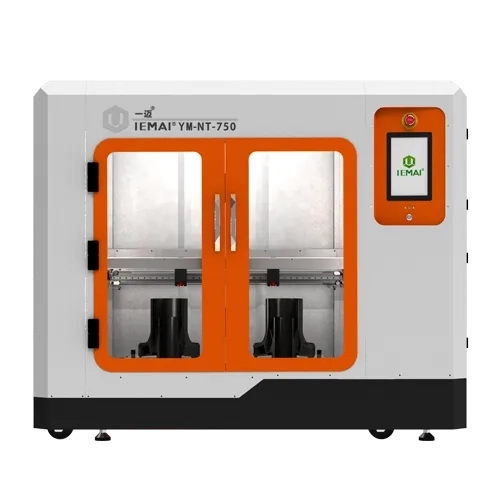

YM-NT-750
Build Volume：750×750×750 mm
Printing Temperature： Max 300°C
Hot Bed Temperature：Max 120°C
Chamber Temperature : Max 60°C
Filament Box Temperature:：Max 60°C
Composite: CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc
Engineering: PC,PA,ASA,ABS,TPU,PETG,PLA etc
Support：E-Water,E-Remove etc
Temperature System
Printing Temperature:Max 300℃
Hot Bed Temperature:Max 120℃,Glass Platform
Chamber Temperature:Max 60℃
Filament Box Temperature:Max 60℃
Temperature Secure Function:Temperature PID Auto Tuning,Temperature Stability ±2℃
Material System
1.75mm Diameter 3D Printing Filament（Thermoplastic）
Composite:CF-PC,CF-PA,GF-PA,CF-ABS,CF-ASA,CF-PETG,CF-PLA etc,Dimensional Accuracy 100mm±0.15mm
Engineering:PC,PA,ASA,ABS,TPU,PETG,PLA etc,Dimensional Accuracy 100mm±0.15mm
Support：E-Water,E-Remove etc
Extrusion System
Printing Speed:Max 150mm/s
Acceleration:1000mm/s²
Flow:16.5mm³/s(0.6mm Nozzle，100mm/s Speed,Under Condition of PLA Printing)
Cooling Method:Air Cooling

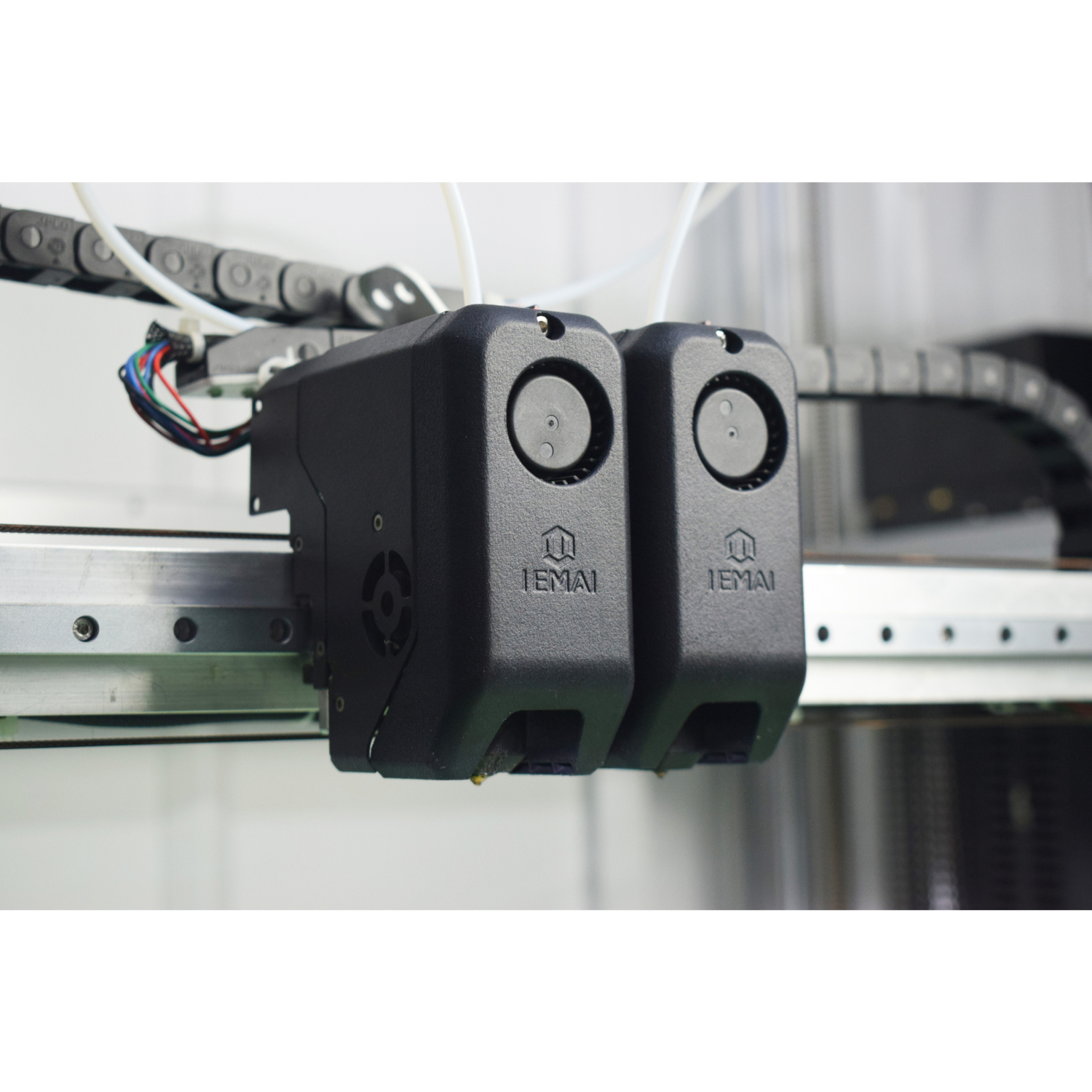

Nozzle Quantity:2 Nozzle Modular，IDEX Individual Motion
Nozzle Size:0.6mm（Standard）/0.4mm（Optional）
Nozzle Material:Copper Alloy（Pure Materials）/Hardened Steel（Fiber Reinforced Materials）
Recommended Layer Thickness:0.05-0.3mm
Motion Hardware
XYZ Axis Motor:High Torque Stepper Motor
XY Axis Transmission:Linear Guide & Synchronize Belt
Z Axis Transmission:Rod Guide & Ball Screw
Positioning Accuracy:X/Y:5.86μm Z:1.56μm
Main Control Hardware
Screen:10.1In Color Touch Screen
Screen Resolution Ratio:1280x800Px
Flash Memory:4GB
Internal Memory:16GB
Motion Control Chip:STM32 ARM Cortex-M4 180MHz
Logic Control Chip:RK3588S Octa-Core 64Bits 2.4GHz+1.8GHz
Software Functionality
Slicing Software:IEMAI 3D SLICER,CURA,S3D,Prusa,OrcaSlicer
Feature Functionality:
Power Failure Recovery,Filament Detection,Automatic Leveling,Automatic Switch-Off,Material Feeders Synchronize Control,Dual Nozzle IDEX Left Right Individual Motion,Dual Nozzle XYZ Distance Calibration,Automatic Cleaning Nozzle,Temperature PID Auto Tuning,Cloud Remote OTA
Machine Operating System:Linux
Data Transmission:Ethernet,USB,WIFI
Cloud Monitor and Control（Free）
Local Network Transmission and Control (Applicable to Confidentiality Enterprises,USD 980 Permanently Authorize 3 Accounts,USD 120 for Each Additional Account)
Motion Control Firmware:Optimized Firmware Based On Marlin 2nd Development
File Formats:STL,OBJ,3MF etc
Operating System:Windows10/11 64 Bits
Size and Weight
Build Volume:750*750*750mm
Machine Size:1642*1110*1320mm
Package Size:1800*1300*1550mm
Net Weight:400KG
Gross Weight:480KG
Electric Parameter
Brand:Mean Well
Power Supply:220V±10% 50-60Hz Max Power 4500W
24 Hrs Average Power Consumption:2.2KW/H(ABS Printing) 0.5KW/H(PLA Printing)
Packing List
Machine,Tool Kits,Start-Up Material Sets,Spare Parts,Slicing Software(Free)
YM-NT-750 is specially designed for engineering plastic, with a temperature of 300 °C extruder temperature and 120 °C
hot bed temperature, it is able to support most of the plastic on the market. It had a modular mechanism on the
extruder which allow it to have simple maintenance and able to equip large-flow print extruder for massive print.
