Main Features

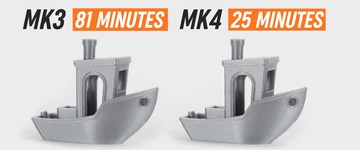

Thanks to our own implementation of Input Shaper and Pressure Advance technologies in the MK4’s firmware, the printer can eliminate resonance in prints and predict the flow of the filament. The result is a decrease in print time by up to 70% in comparison with MK3. What's more, the printer is very quiet even at these speeds. Support for high-speed printing will be added later via a firmware update.
Thanks to the precise Loadcell sensor, MK4 can lay down a perfectly smooth and consistent first layer automatically without any user input. At the beginning of a print, the printer taps the sheet with the nozzle in a grid-like pattern to measure the distance and then calculates the correct offsets. The result is a perfect first layer on every surface, without manual adjustments.
Extruder is the heart of every 3D printer. And this is a special one. On most 3D printers today, replacing extruder components is a rather complicated process. With the new connector break-out board inside the Nextruder, all of the parts, such as fans, heaters, thermistors, etc., are connected directly there. If you need to swap anything, it takes just a minute.
Our new xBuddy board is a 32-bit STM32-powered mainboard with many great features. It has several unique hardware-based safety protection systems, communicates with four thermistors, has all important ports (Ethernet, Wi-Fi, works with USB-A flash drives) and more. The entire board was designed, manufactured, and tested in-house.
The MK4 comes with redesigned, more robust plastic parts and new precise 0.9° stepper motors (0.9° / step; low inductance) on the X and Y axes that help eliminate Vertical Fine Artifacts on prints. Plus, there are thicker 10mm rods on the Z-axis. The result is, that prints look better than ever and even printing with “problematic” filaments like Flex is a breeze.
MK4’s display supports G-code thumbnails, QR codes and other elements that make using the printer so much easier. We also redesigned many of the existing menus and added a customizable footer panel. Directly under the LCD, there is an RGB status bar to signalize the current status of the printer. Next to the LCD, there’s a USB-A port for standard USB flash drives.
Thanks to two quick-release thumbscrews on the side of the body of Nextruder, which holds the nozzle in place, you can swap nozzles easier than ever. The MK4 is using special nozzles with an all-metal filament guide (no PTFE tubes anywhere), which improves the overall reliability of the printer. Simple Nextruder-to-V6 adapter is available.
Our internally developed multiplatform slicer comes with in-house made and fully tested profiles for all of our 3D printers and a wide range of filaments. With built-in tools, such as organic supports, cutting, automated object distribution, ironing and many others, you will turn your 3D models into print files in no time!
The MK4 is fully compatible with a wide range of various types of materials. No matter whether you want to print something for fun from PLA and flexible materials, or you need to produce durable prototypes from PETG, ASA, Polycarbonate and Polypropylene - the MK4 can handle them without any problem.
MK4 is, along our other 3D printers, fully supported by Prusa Connect, which allows you to control the printer via internet. You can drag-and-drop G-Codes into the browser window to upload print files first into the cloud (each user gets 2 GB for free) and then transfer it into the printer’s USB storage and start the print remotely. All communication is encrypted.
What you can print with the MK4? Almost anything! Check out the inspiration and free 3D models for kitchen, living room, home decor and garden on Printables.com.
You can also browse amazing models from designers from all over the world submitted in thematic contests.
Whether you're maker, cosplayer, pop-culture fan, gamer, modeller or board-game player, MK4 can open up new possibilities for you.
On Printables.com, you can share your designs and makes with others or download 3D models for free. Join us!

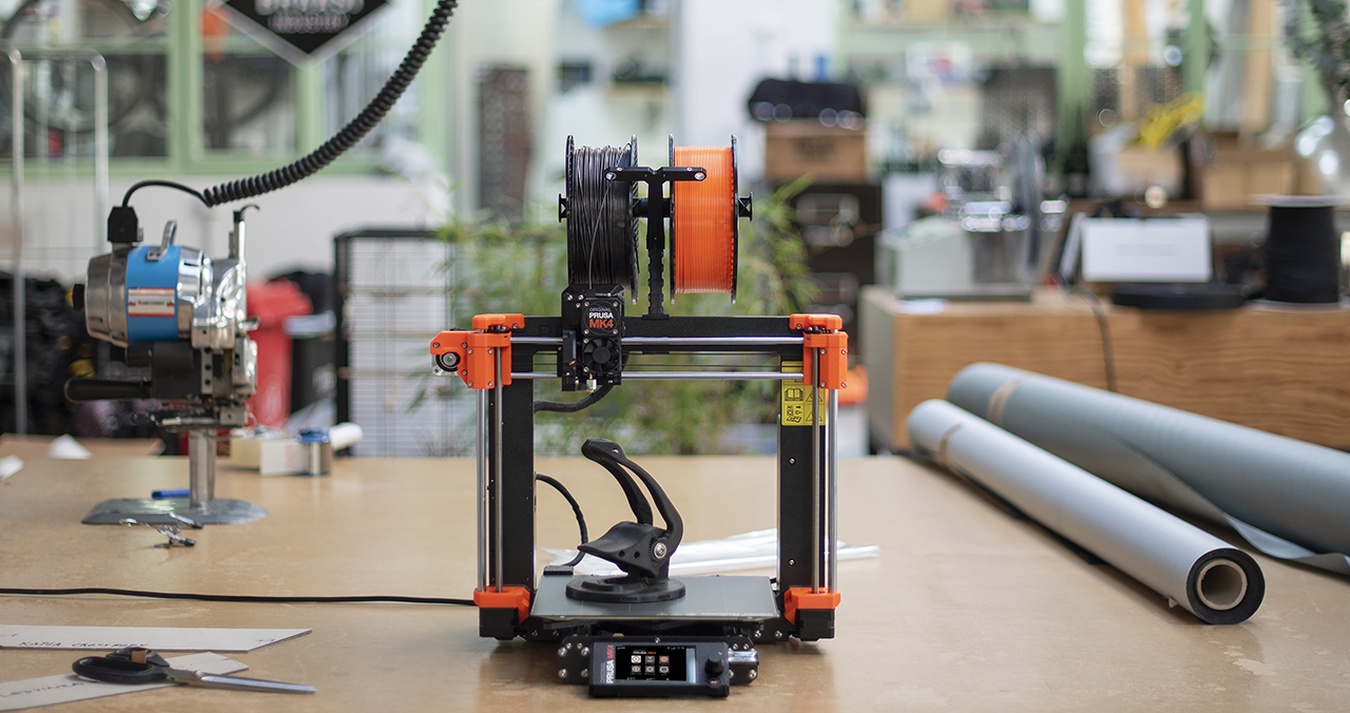

Original Prusa 3D printers are used in industries worldwide as efficient, easy-to-use, and reliable 3D printing workhorses.
Our cost-effective solution with simple maintenance is a perfect choice for everyone - from start-ups to the large international companies!
Join the tens of thousands of schools, universities, and other educational institutions worldwide that have adopted 3D printing! Explore the vast possibilities of this essential, state-of-the-art technology.
Read more case studies and examples of usage of the Original Prusa printers in education.
A quick and affordable way to create refined models with intricate detail. Free up the time of your skilled designers and let the 3D printers do the hard work.
Check out the videos and articles about leading designers and artists using our 3D printers in their work.
Modern-day automotive industry faces many challenges - from disrupted supply chains to rapid technology development and constant changes. 3D printing brings the necessary efficiency and flexibility.
Here are examples of where our 3D printers helped with the production and prototyping in the automotive industry.
| Build Volume | 250 x 210 x 220 mm | 9.84 x 8.3 x 8.6 in |
| Filament diameter> | 1.75 mm |
| Layer height | 0.05-0.30 mm |
| Mainboard | Custom 32-bit xBuddy electronics with STM32 |
| Stepper Drivers | Trinamic 2130 |
| Stepper motors | Precise 0.9° X,Y stepper motors (prevents VFA) |
| Extruder | Nextruder, Direct Drive, E3D V6 compatible (with adapter) |
| Extruder electronics | Custom breakout board for connecting fans, thermistors and other parts. |
| Filament path | Aluminum heatsink, all-metal hotend, no PTFE tube |
| Drive system | Nextruder Planetary Gear System, 10:1 gearbox ratio |
| Nozzle diameter | 0.4mm (default) / other nozzle diameters supported |
| Max nozzle temperature | 300 °C / 572 °F |
| Max heatbed temperature | 120 °C / 248 °F |
| LCD screen | 3.5″ graphic 65k color screen |
| Connectivity | LAN, Optional ESP Wi-Fi module (delivered with the printer) |
| Print medium | USB drive / LAN / internet via Prusa Connect |
| Advanced sensors | Filament sensor, Loadcell sensor, Power panic, 4 high-precision thermistors (genuine Semitec) + fan motors RPM monitoring |
| Print surface | Magnetic heatbed with removable PEI spring steel sheets |
| Bed calibration | Automatic, Mesh Bed Leveling (only on print area) |
| Supported materials | PLA, PETG, ABS, ASA, Flex, HIPS, PA, PVA, PC, PP, CPE, PVB, NGEN, composites and more |
| Printer dimensions (without spool) | 7 kg, 500×550×400 mm; 19.6×21.6×15.7 in (X×Y×Z) |
| PSU | 240W, custom made by Delta with Power Panic HW |
| Power consumption | PLA settings: 80W / ABS settings: 120W |
* Consumable parts, such as print sheets (smooth, textured, etc.), are not covered by the warranty since their coatings are expected to deteriorate over time, unless the failure is due to a defect in materials or workmanship. Cosmetic damage, which includes, but is not limited to, scratches, dents, cracks, or other aesthetic damage, is also not covered. Only sheets defective upon delivery are covered by the warranty.
MK4 can be enhanced by an optional add-on that allows your single-extruder printer to print with up to 5 colors (materials) at the same time. The MMU3 contains five filament insertion points. Load the five colors of your choice, slice the object with MMU3 profile in PrusaSlicer and start the print. The system automatically selects filament using the selector, loads it into the Nextruder and the MK4 starts printing. When it’s time to change the color or material, it also happens automatically.
The MMU3 is the latest edition of Multi Material printing device by Prusa Research. The firmware has been rewritten completely, we have redesigned the plastic parts, added more robust metal parts, improved the electronics and updated the filament buffer. All of these changes have improved the reliability and user comfort to levels where MMU has never been before.
MK4 is fully compatible with the Original Prusa Enclosure. If you want to print more advanced technical materials on your MK4, you’ll find the Enclosure really handy. It stabilizes the printer environment, eliminates drafts and odors, and makes the printer even more silent.
The Enclosure is available with a range of useful add-ons, such as a filtration system, locking mechanism and more - check out the announcement article and the Enclosure section on our e-shop. You can also purchase the MK4 with the Enclosure in a discounted bundle.
Yazıcı Türü | FDM |
Çıktı Hacmi | Minimum 25 X 21 X 20 Cm |
Katman Yüksekliği | 0.05 - 0.35mm |
Maksimum Hareket Hızı | 200+ Mm/S |
Maksimum Baskı Ucu Sıcaklığı | 300 Oc |
Maksimum Yatak Sıcaklığı | 120 Oc |
Hammadde Özellikleri | 1.75mm Filament |
Nozzle Çapı | 0.4mm ( E3D V6 Uyumlu Değiştirilebilir Nozzle) |
Desteklediği Malzeme | Pla, Abs, Pet, Hıps, Flex Pp, Ninjaflex, Laywood, Laybrick, Bamboofill, Bronzefill, Asa, T-Glase Ve Tüm Naylon Ve Polikarbon İçeren Termoplastikler |
Hammadde Sensorü | Filament Sensörü |
Yazılım Destekli Otomatik Yatak Kalibrasyon | Otomatik 9 Veya 49 Noktadan Yatak Kalibrasyonu |
Güç Girişi | 220-240 V |
Elektrik Kesintisinden Sonra Baskıya Devam Özelliği | Evet |
Lcd Ekran | Monochromatic Lcd |
Baskı Ortamı | Sd Kart |
Yazılım Güncelleme Arayüzü | Usb Port |
Gelişmiş Sensörler | 4 Termistör, Fan Rpm Sensörleri, Power Panic, Otamatik Yatak Kalibrasyon Sensörü, P.I.N.D.A 2 PROB |
Nozzle Başlığı | Değiştirilebilir E3D 0.4mm Nozzle |
Extruder Besleme Sistemi | Bondtech Extruder |
Step Motor Sürücüleri | Trinamic2130 |
Baskı Soğutma Fanı | Noctua |
